Quick Viewing Of Types Of Semi-Automatic Pullet Battery Cage

Why choosing Taiyu (HK) pullet cage

The advantage of Taiyu (HK) pullet cage

1. Quality and design of Taiyu (HK) pullet cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hongkong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Popular types of Taiyu (HK) pullet cage for sale

To help you better understanding solution of pullet cage or pullet farm, please watch the following video of farm application

Video 1: Taiyu (HK)'s turnkey case of pullet farm

For medium and large-scale pullet farms, this H type cage system combined with environmental control equipment is the ideal solution for efficient and healthy bird growth.

The equipment list in the video

1. Feed mill (00:40s)

2. H type 4 tiers of pullet cage system (00:10s)

3. Automatic system based on cages: drinking, feeding and manure removal system (00:13s, 00:48s, 01:42)

4. Environmental control system: automatic house lighting, house warm device and house ventilation system (01:21s, 01:24s. 01:33s)

Tips for purchasing

• NO. 2 and NO. 3 are required equipment.

• NO. 1 and NO. 4 are optional equipment, normally the temperate and frigid climates use them, countries from tropical climates as appropriate.

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK) A type of pullet cage

This A type cage system is ideal for small and medium-scale pullet farms, offering an economical and cost-effective solution for efficient management and healthy bird growth.

The equipment list in the video

1. A type 4 tiers of pullet cage system

2. Automatic drinking system

Tips for system upgrate

To be fully automatic system, farmers could choose

• Feeding and manure scraper or belt removal system.

• Automatic house lighting, house warm device and house ventilation system (the temperate and frigid climates use them, countries from tropical climates as appropriate)

24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Taiyu (HK) group - The trusted choice for modern poultry farming solutions

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

Global presence & strong service network

Headquartered in Hong Kong, with branches in China, Nigeria, Tanzania, Ethiopia, and Kenya, supported by a complete global pre-sales and after-sales service system.

Feed technology support advantage

Free feed formula provided, backed by 20 years of feed mill experience, helping reduce cost and improve performance.

Factory Direct Price Advantage

Factory direct supply, no middlemen, ensuring more competitive pricing and better value for your investment.

One-stop turnkey poultry farming solutions

Providing 100–1,000,000 bird turnkey projects, including farm design, equipment supply, and smart farm integration.

Trusted by 3,000+ farms worldwide

Serving 3,000+ poultry farms globally with proven turnkey project experience.

European Standard Pullet Battery Cage System

Our design and quality of pullet battery cage system and equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

All pictures (or videos) of this pages are the application of our pullet battery cage system in customers' projects. Our technicians have rich experience in localizing projects.

Recommended related battery cage

To learn more, please visit product list...

Brief information of pullet battery cage system

In modern layer farming, the rearing period of pullets is the cornerstone of future egg production efficiency.

Selecting a professional pullet cage system is like equipping your future layer flock with the best foundation.

Today, we go beyond tradition and provide an in-depth technical comparison based on cage structure (A-type vs. H-type) and automation level (fully automatic vs. Semi-automatic).

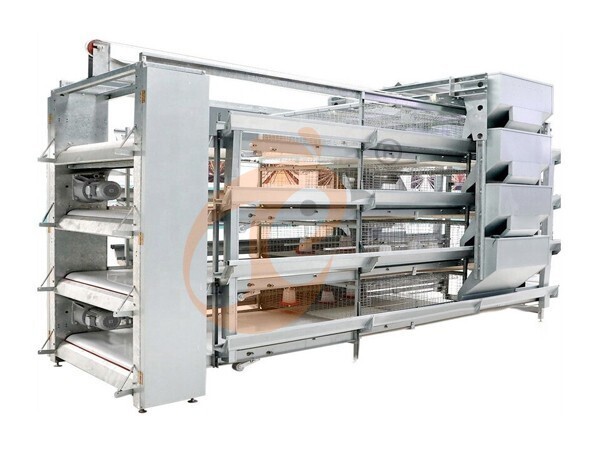

1. Semi-automatic H-type pullet battery cage system

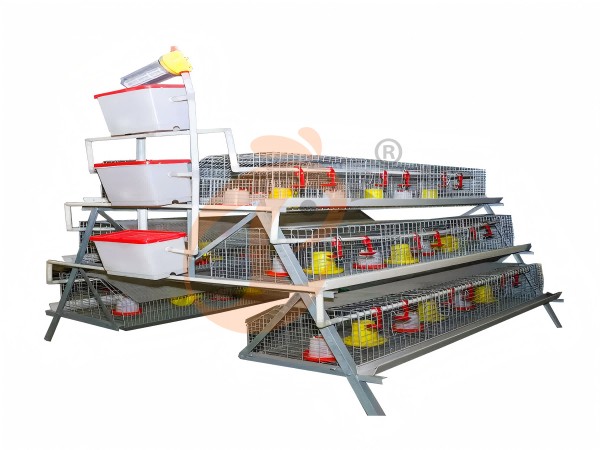

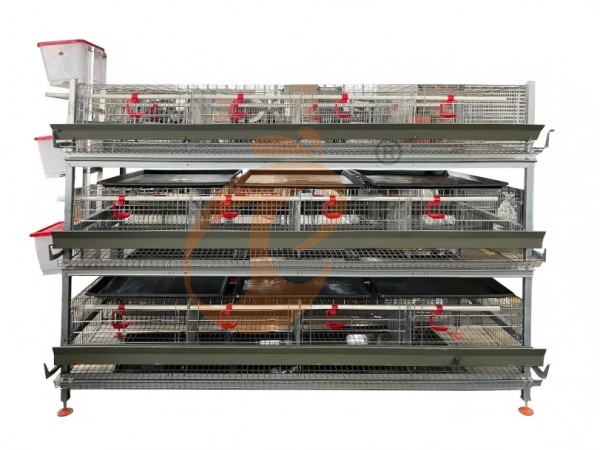

2. Semi-automatic A-type pullet battery cage system

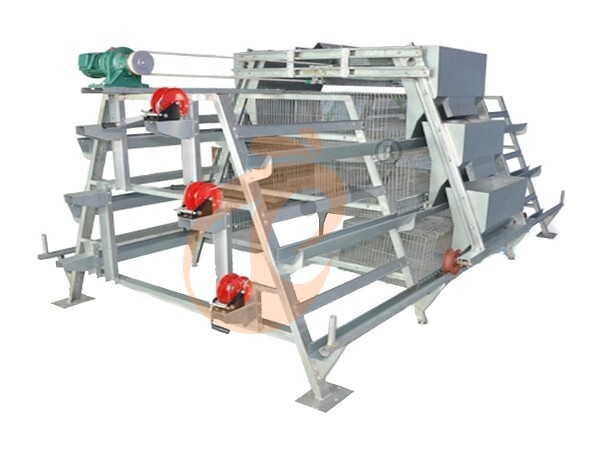

3. Fully automatic A-type pullet battery cage system

4. Fully automatic H-type pullet battery cage system

Pullet capacity/house with pullet battery cage system

Data is for reference only. Swipe horizontally to view full table.

1. Semi-automatic H-type pullet battery cage system

2. Semi-automatic A-type pullet battery cage system

3. Fully automatic H-type pullet battery cage system

4. Fully automatic A-type pullet battery cage system

Automation levels: efficiency multipliers

Regardless of structure, cages can support varying levels of automation.

1. Semi-automatic systems – balance of efficiency & investment

(1) Key features

• Feeding: Overhead feeding system, speed 6–8 m/min, a 70 m long house can be fed in 5–8 minutes.

• Drinking: Automatic drinkers with stainless-steel ball valves, flow 60–80 ml/min per bird.

• Manure removal: Timed manure belts, motor power 0.75–1.1 kW, continuous operation 6–8 hours.

• Other tasks: Immunization, grouping, and lighting require manual intervention.

(2) Advantages

• Labor requirement: 2–3 workers per 10,000 birds.

• Investment: Saves 20–30% upfront cost compared to fully automatic systems.

• Practicality: Suitable for medium-scale farms or phased expansions.

2. Fully automatic systems – smart farming at its best

(1) Key features

• Environmental intelligent control: Automatic adjustment of temperature, humidity, ventilation; fan power 1.1–1.5 kW/unit, wet pad efficiency 75–85%.

• Remote monitoring: Sensors track temperature, humidity, ammonia levels, and provide video surveillance.

• Automatic body weight monitoring: Accuracy ±20 g, enables real-time growth tracking.

• Data-driven management: Integrates with farm management software to generate daily feeding reports, consumption curves, and mortality statistics automatically.

(2) Advantages

• Labor savings: 1–2 operators for a 50,000-bird house.

• Improved survival rate: 95–97%, 3–5% higher than traditional methods.

• Feed efficiency: FCR improved by 5–8%, minimal feed waste.

• Long-term value: Reduces human error, minimizes disease risk, supports scalable intelligent farming.

Comparative overview of A type and H type pullet battery cage system

Farm application & rearing knowledge

1. Farm layout & stocking density

(1) House dimensions: For 30,000–100,000 day-old chicks, typical house size is 50–100 m length × 8 m width × 6.4–12.6 m height.

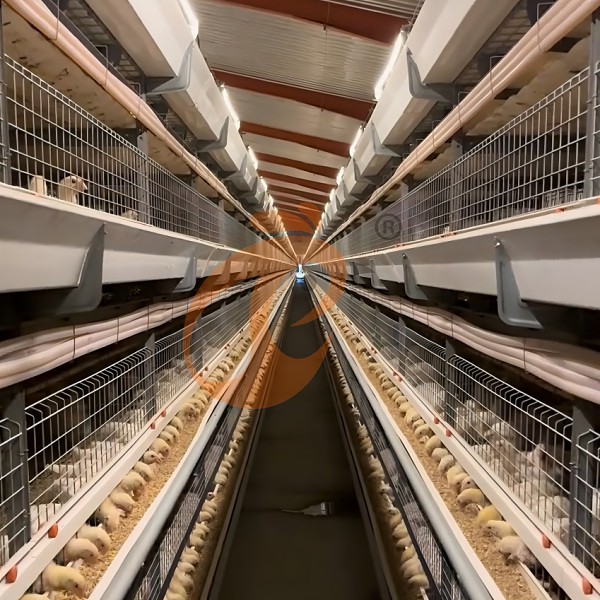

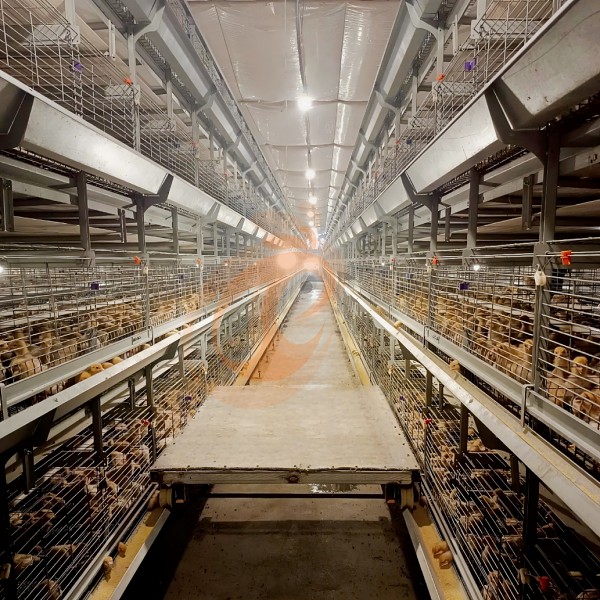

(2) Cage placement: H-type cages are commonly placed along the long axis of the house, leaving 1.2–1.5 m central aisle for feeding, watering, and inspection.
A-type cages may require slightly wider aisles (1.5–2 m) for semi-automatic feeding access.

(3) Stocking density:

• H-type: 300-555 cm² per chick (single-tier base area), suitable for multi-tier systems, supports uniform growth.

• A-type: 555-722 cm² per chick, slightly lower density, easier to monitor small birds and reduce stress.

2. Feeding & nutrition

(1) Automatic feeding systems allow precise control of feed volume per chick, ensuring uniform growth.

(2) Starter feed: 0–3 weeks: 20–22% protein, 2800–3000 kcal/kg metabolizable energy (me).

(3) Grower feed: 3–12 weeks: 18–20% protein, 2800–2900 kcal/kg me.

(4) Feeding schedule: H-type fully automatic systems can feed every 2–3 hours during the day, a-type semi-automatic may require manual checks 2–3 times daily.

3. Water & climate management

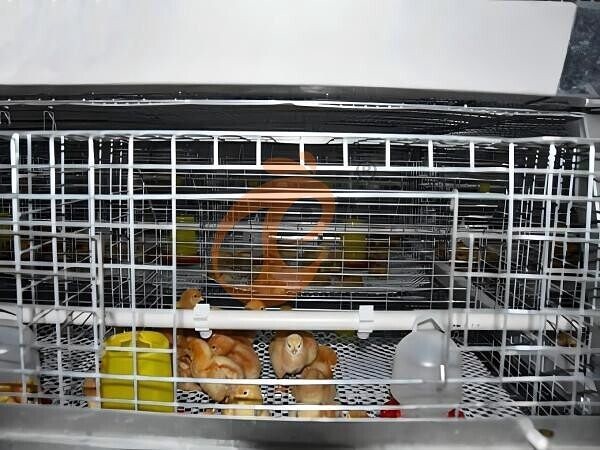

(1) Nipple drinkers or small cups integrated into both H-type and A-type cages ensure constant clean water.

(2) Temperature control:

• Day-old chicks: 32–34°c, gradually reduced by 2–3°c per week to 22°c at 6 weeks.

• Proper ventilation and uniform heating are critical in multi-tier cages to prevent uneven growth and mortality.

(3)Humidity: Maintain 50–60% relative humidity to prevent respiratory issues.

4. Lighting programs

(1) Starter phase (0–2 weeks): 24-hour light to encourage feeding and drinking.

(2) Grower phase (3–12 weeks): 16–18 hours light/day, gradually reduced to 12–14 hours before pullet transfer.

(3) Lighting intensity: 20 lux in H-type cages, slightly higher in a-type (25–30 lux) for small chicks.

5. Health management

(1) Vaccination programs: Follow standard schedule for marek’s disease, newcastle disease, and infectious bronchitis.

(2) Monitoring: Multi-tier H-type systems allow visual inspection along central aisles; a-type cages allow direct access for manual checks.

(3) Biosecurity: Footbaths, restricted access, and controlled ventilation reduce pathogen spread in high-density housing.

6. Mortality & growth monitoring

(1) Expected mortality: 2–5% in the first 6 weeks for well-managed systems.

(2) Growth tracking: Weekly weight measurement; uniform weight gain indicates proper feeder/waterer function.

(3) Adjustments: In H-type cages, uneven growth may indicate uneven feed distribution or poor ventilation; in a-type, manual feed adjustment may be needed.

7. Transition to laying houses

(1) Pullets reared in H-type cages can be directly transferred to layer cages with minimal stress, thanks to familiarity with multi-tier systems.

(2) A-type pullets may require a short acclimation period if moving to higher-density layer cages.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.

Tips of selecting battery cage and poultry farm equipment

For reference only, it depends on your actual demands and situation of your poultry farm.
