Quick Viewing Air Inlet System

To make you easily understanding completed poultry climate system, here are 3 videos of TaiYu (HK) Group's cases - shows the cooperation of fans, pads, airflow panel door, inlet system and the other climate equipment in the chicken house.

TaiYu (HK) Group's case 1

At 2:36s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 2

At 0:52s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 3

At 0:22s showing it and full climate system in poultry house.

Why choosing and cooperate with Taiyu Group?

Hong Kong Headquarter, China, Ethiopia, Tanzania and Nigeria branch and factory supplying poultry farm solution with keeping talking with Euro and USA engineers.

Here is a 15 mins video showing mins showing poultry farm equipment, production department, QC, logistics department, customer cases...

1. Abundant practical experience – Founded in 2011, Taiyu Group has provided high-quality poultry battery cages and farm equipment to over 100 countries.

2. Fast and convenient delivery – With ready stock, orders paid in the morning can be delivered the same day or the next day in branches.

3. Easy after-sales support – Our team offers prompt and professional service to farmers of all sizes, ensuring your farm runs smoothly.

Learn completed house climate system, please find out:

Ventilation and temperature control system

Recommend poultry farm equipment you may need

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm business plan and equipment list with quotation.

Our design and quality of air inlet system and equipment based on European and USA standard.

European Standard Air Inlet System

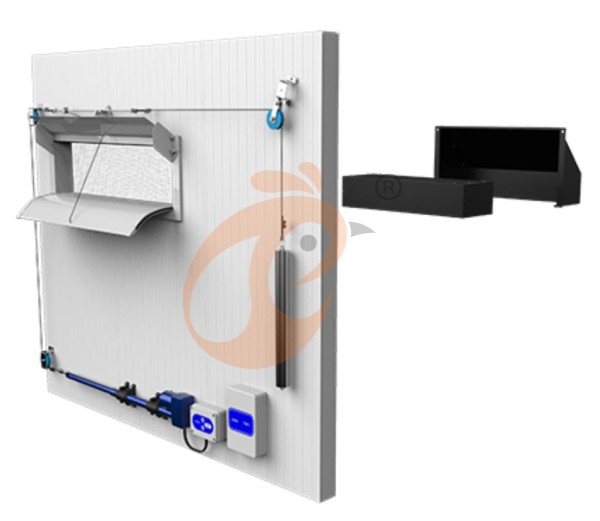

Brief introduction of air inlet system

1. The air inlet system integrates spring, arched, and sidewall inlets to deliver consistent ventilation across houses of different sizes.

2. Correct installation improves oxygen levels, prevents gas accumulation, and enhances bird welfare.

3. Combined with exhaust fan systems, it supports effective cross-ventilation in long poultry houses, ensuring consistent environmental conditions.

Application of air inlet system

1. Suitable for layers, broilers, and pullets in small to large-scale farms.

2. Can be integrated with IoT-based climate control systems for automated adjustment of airflow.

3. Seasonal adjustments allow narrow airflow in cold periods and broader circulation during warm periods.

4. Provides stable ventilation in houses with complex layouts or multiple tiers.

Characteristic of air inlet system

1. Provides controlled airflow to maintain stable temperature throughout the poultry house.

2. Adjustable deflectors allow precise direction of air to avoid cold drafts.

3. Airtight sealing reduces energy loss and prevents unwanted infiltration.

4. Opening mechanisms operate automatically—spring tension for spring inlets and gravity-assisted for arched or sidewall inlets.

5. Constructed from durable, corrosion-resistant materials suitable for long-term operation in high-humidity environments.

Sample of air inlet system

Slide the table to view the complete content. The data is for reference only.

Material of air inlet system

1. Spring Inlet Window: PS, lightweight and durable.

2. Arched Inlet Window: PP+PVC, corrosion-resistant and stable.

3. Sidewall Large Window System: PS+PVC, suitable for large openings and long-term use.

4. Frames and Fasteners: Galvanized or stainless steel for reliable, maintenance-free operation.

Working principle of air inlet system

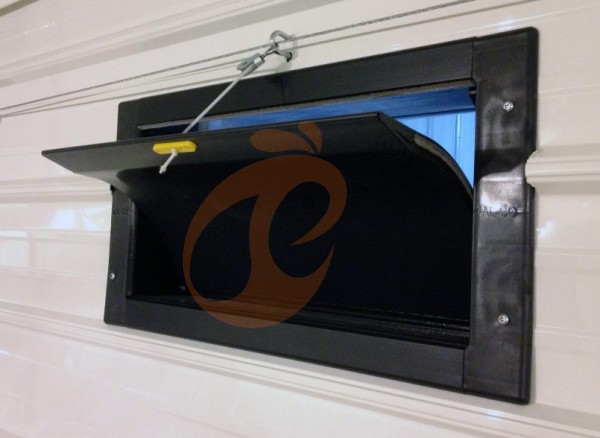

1. Spring inlet window fitting

Fittings

• Adjustable guide plate

• Spring traction motor

• Ribbed groove sealing

• Nylon/glass fiber pulleys

• Aluminum alloy frame

• Optional sensors: temperature, humidity, CO₂, ammonia

Working process

• The drive motor opens the spring inlet window.

• Spring tension ensures automatic closure once the drive stops.

• Adjustable guide plates direct airflow to the center of the poultry house.

• Sensors monitor house climate; system adjusts opening angle automatically.

• Remote monitoring and control available via mobile phone, tablet, or computer app.

• Alarms trigger if abnormal operation is detected, and the system shuts down affected inlets.

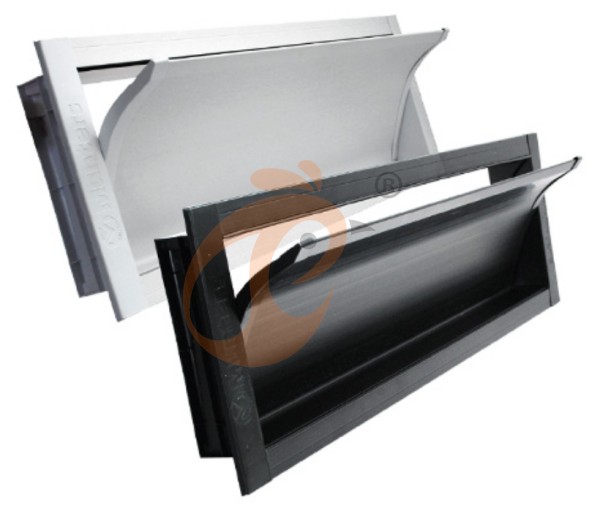

2. Arched inlet window fitting

Fittings

• Adjustable deflector

• Drive motor

• PU sealing strip

• PP+PVC frame

• Pull arms (1–2 per window)

• Optional sensors: temperature, humidity, CO₂, ammonia

Working process

• Drive motor closes the inlet window; gravity mechanism opens it automatically.

• Deflector angles are adjusted to direct airflow evenly and prevent direct drafts on birds.

• PU seals maintain airtight closure.

• Sensors continuously monitor house conditions and adjust opening if integrated with IoT system.

• Remote start, stop, and scheduling of each inlet possible through the app.

• System issues warnings and stops inlet operation if anomalies are detected.

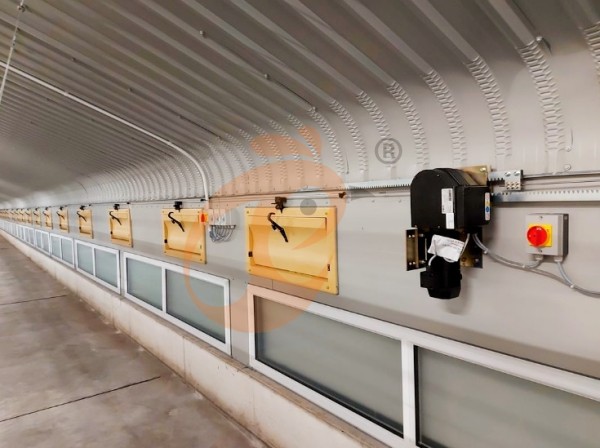

3. Sidewall large window system fitting

Fittings

• Deflectors for airflow direction

• Drive motor

• High-performance rubber seals

• PS+PVC frame

• Pull arms (1 per window)

• Optional sensors: temperature, humidity, CO₂, ammonia

Working process

• Drive motor closes the window; gravity opening occurs automatically.

• Deflectors adjust airflow to cover the entire house evenly.

• Rubber seals prevent cold air infiltration.

• Sensor data can trigger automatic adjustments of window opening angle.

• Each window can be scheduled for operation through a management app.

• Alarms activate and stop the system if abnormal performance occurs.

Maintain of air inlet system

1. Clean inlets, guide plates, and sensors every 6–12 months to prevent dust buildup.

2. Lubricate pulleys and hinges annually to ensure smooth operation.

3. Inspect PU and rubber seals for wear and replace as needed (18–24 months).

4. Verify all fasteners and hinges bi-annually for corrosion or loosening.

5. Calibrate sensors yearly to ensure accurate IoT feedback and climate control.
