Brief introduction

A manure removal machine or scraper removal system is designed for a variety of sheds and other farming manure cleaning such as the chicken, duck, goat, rabbit and so on

It does an amazing job in terms of reducing the amount of labor required and help to maintain a good indoor air environment so that the animals have a good living space

Then reduces the incidence of the disease

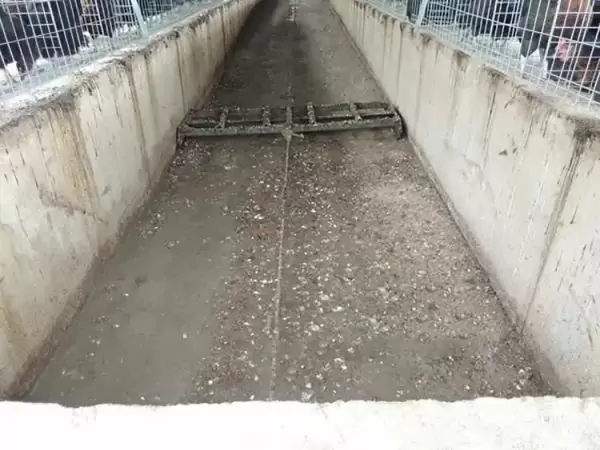

The scraper is matching with A frame of chicken cage, it is fixed under the chicken cage

Our features
1. Essentially robotic and they do not need to be manned, the time can be set according to the needs of the farmer, ensuring automatic timing for manure cleaning keeps any chicken house clean 24/ 7, 365 days of the year
2. Automatically cleans manure as often as you require, the operation is simple and quick, and of course automatic, the timer may be changed manually when required, at the discretion of the farmer or his workers
3. The design of the scraping manure plate features eight wheels, the scraper itself retracts automatically and the plate can be adjusted manually, there is very little friction during operation
4. The trough can be cleaned thoroughly, with ease
5. We supply 220 V single to phase power and 380 V three to phase power to meet the needs of all farmers

Choose us
Our service are from design schemes of turnkey poultry farm project, product introduction, offer quotation, delivery, installation instruction, equipment maintenance to farm instruction and so on
20 years poultry equipment R&D and manufacturing with supporting of advanced German production technology
Our team is ready to service you 24 hours online

Material
High quality galvanized steel and stainless steel pipe plate, motor, galvanized steel, stainless steel, plastic and imported fittings, rolls, installation tools and so on

Fitting
Motor, scraper, rope, wheels and so on

Working principle

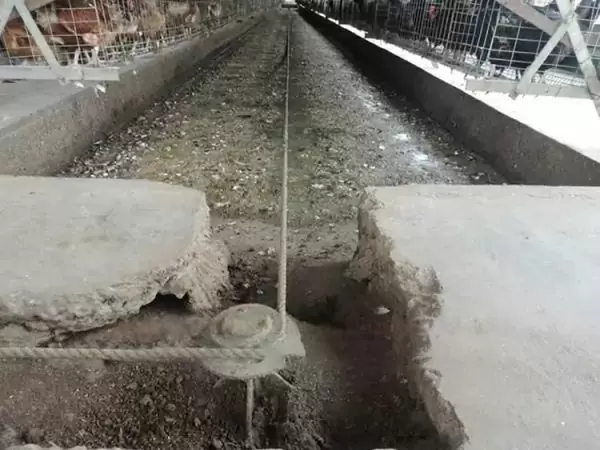

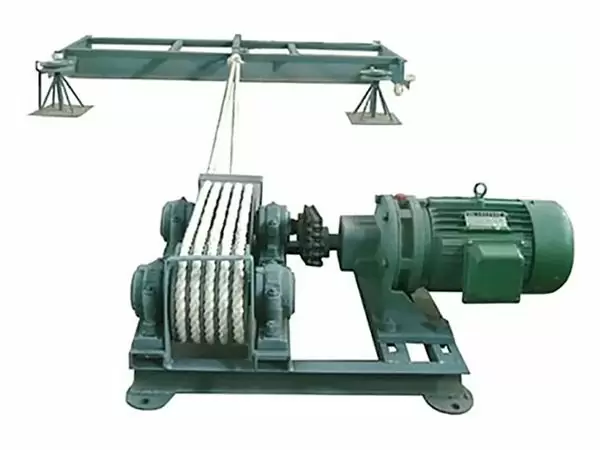

Manure scraper connects with the rope, the rope connects with the electro motor, tum on the electro mo to tor, the manure scraper will go from the beginning of the hollow to the end

One set is working for 2 rows or 3 rows of chicken cage

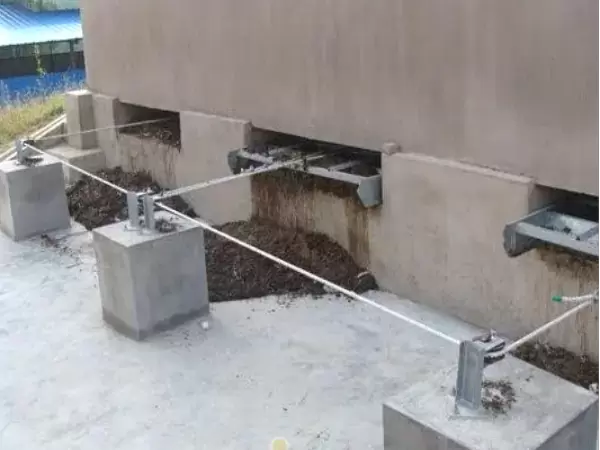

The dung pit design
1. Depth: about 30cm
2. Width: it is as the bottom of the frame of the chicken cage system, as the distance between the two legs of the chicken cage
3. Length: it is as the chicken house, the pool is outside the chicken house
4. Passage: 30cm higher than level, pit is at levelline, dung is easy to clean outside chicken house

Specification

Package

1. Full container: all are packed by wooden pallets, boxes, plastic wraps, it depends
2. Less container: all are packed by wooden pallets, boxes, plastic wraps, it depends
3. Local warehouse: all are packed by wooden pallets, boxes, plastic wraps, it depends

Delivery
1. Full or less container by sea
2. Local warehouse by truck

Installation
We supply to you the detailed instructions and steps of pictures or videos by email or express delivery, you supply to your farm manager and workers or send installation engineer to you

Maintenance
1. After installation, text the voltage stability to protect the motor
2. Turn on, look at the rope loosened or tightly, make appropriate adjustment
3. Check scraper going in the balance
