Broiler Cage Design Types Explained: A-Frame Vs H-Frame Vs Flat Deck Systems

Time : Jun 10, 2026

In 2026, selecting between A-Frame, H-Frame, and Flat Deck broiler cage systems directly dictates stocking density, feed conversion ratio (FCR), micro-climate control stability, and long-term operating costs. A technically aligned equipment selection improves daily management efficiency by 15% to 35% and reduces gross feed waste by 3% to 8%.

A-Frame Systems: Lower upfront capital investment, simplified mechanical structure, and ideal for mid-scale operations or poultry houses with structural height restrictions.

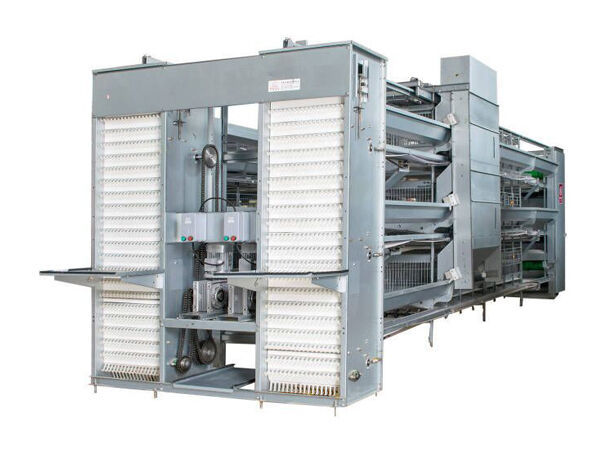

H-Frame Systems: High-density vertical stacking, maximum volumetric utilization, and fully automated manure extraction for superior ammonia ($NH_3$) control.
Flat Deck Systems: Unobstructed visual inspection lines, easy manual bird handling, and highly suited for specific short-cycle premium setups or low-profile retrofits.

Get professional poultry farm construction guidance, equipment selection solutions, and the latest price lists, whatsApp to +8618830120193, click to learn more:

Ethiopia Branch Office And Factory Of Poultry Farm Equipment

Core Structural & Performance Vector Comparisons

Commercial evaluations must balance upfront capital expenditures (CAPEX) with lifetime operational efficiencies (OPEX) rather than relying solely on initial purchase price quotes.

Performance Vector	A-Frame System	H-Frame System	Flat Deck System
Initial CAPEX Allocation	Lower (10% to 18% savings)	Medium to High	Medium
Automation Integration	Basic to Medium	Full (Feeding, Manure, Harvesting)	Basic to Medium
Effective Stocking Density	Moderate	High (12% to 25% volumetric gain)	Low to Moderate
Ventilation Compatibility	Good	Excellent (Optimized for Tunnel Flow)	Good
Labor Overhead Reductions	15% to 25%	25% to 40%	Moderate
Scalability & Phased Expansion	Good	Excellent	Good

Mechanical & Technical Specification Profiles

Different target capacities and environmental parameters require tailored structural alignments to secure consistent growth uniformity.

Specification Variable	A-Frame Design Parameters	H-Frame Design Parameters
Recommended Barn Capacity	10,000 to 30,000 Birds per House	30,000 to 50,000+ Birds per House
Building Volume Utilization	Standard footprint footprint; requires wider aisles	Maximum vertical footprint density
Manure Management Layout	Deep pit collection or mechanical scraper	Automated PP longitudinal conveyor belts
Technical Maintenance Profile	Low-complexity mechanics; basic tools required	High-tier automated loops; requires calibrated sensors

Intensive Infrastructure Design Standards

For large-scale commercial poultry integrations, cage engineering configurations must match feed distribution logistics. In centralized layouts, automated cage feeding hoppers link seamlessly with a Common Feed Mill, which handles suction feeding, crushing, and uniform ingredient blending to achieve a 1,000 to 5,000 kg per hour output matrix.

Actual Farm Boundary Constraints	Recommended Cage Design	Primary Engineering Rationale
Limited Startup Capital / Tier-1 Launch	A-Frame System	Lowers entry CAPEX; highly dependable mechanical setup
High-Capacity Targets / Minimal Land Plots	H-Frame System	Multiplies birds per square meter; drops per-bird labor OPEX
Low Clearance Barn Roof Retrofitting	Flat Deck System	Avoids vertical thermal strata traps; fits existing infrastructure

Frequently Asked Questions Regarding System Engineering

Why do modern commercial integrations prioritize vertical H-Frame designs?

H-Frame systems maximize vertical space while aligning bird rows with high-velocity longitudinal tunnel ventilation systems. This setup eliminates stagnant pockets of heat and humidity across all tiers. Combined with automated polypropylene manure belts, it isolates feces immediately, keeping ammonia levels below 10 ppm to maximize bird health and growth performance.

Is the classic A-Frame cage design still a viable sourcing option?

Yes. A-Frame systems remain highly practical for mid-scale farms, regions with manageable labor costs, or areas with unstable power grids where simpler mechanical systems are preferred over high-tier computerized automation loops. It provides an excellent balance of durability and performance at a lower initial cost.

Commercial Turnkey Integration Capabilities By Vanke

Vanke specializes in commercial poultry barn dimension engineering, spatial cage layout calculation, and complete integrated recycling farm blueprints. Based on your specific land plot coordinates and terrain profiles, our technical engineering office provides complimentary custom CAD cage layouts and structural house architecture drawings.

Our master planning integration unifies commercial broiler rearing facilities, centralized feed mill processing buildings, automated organic manure fermentation zones, biosecurity access control points, and logistical storage hubs to protect your investment asset lifecycle.

Precision Blueprint Engineering: Custom CAD asset maps matching equipment sizing to regional micro-climate ventilation parameters.
Full-Lifecycle Industrial Support: Factory-direct heavy machinery manufacturing, itemized bills of materials, technical assembly supervision, and long-term spare parts supply guarantees.
