Quick Viewing Of Ventilation And Temperature Control System

Our design and quality of ventilation and temperature control system and equipment based on European and USA standard.

To make you easily understanding completed poultry climate system, here are 3 videos of TaiYu (HK) Group's cases - shows the smart controller, cooperation of fans, pads, airflow panel door, inlet system and the other climate equipment in the chicken house.

TaiYu (HK) Group's case 1

At 2:36s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 2

At 0:52s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 3

At 0:22s showing it and full climate system in poultry house.

Why choosing and cooperate with Taiyu (HK) Group?

Here is a 15 mins video showing mins showing poultry farm equipment, production department, QC, logistics department, customer cases...

1. You will have the world-class quality while costs are reduced by 20%.

The research and development keep talking with Euro and USA engineers, but produce in China or other branches.

2. You can quickly obtain all the data of their poultry farm.

We have artificial intelligent management system, such as viewing the data of feed consumption, growth rate and so on of all chicken houses through the APP installed on your mobile phone, I-pad or computer.

Recommend poultry farm equipment you may need

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm business plan and equipment list with quotation.

European Standard Ventilation And Temperature Control System

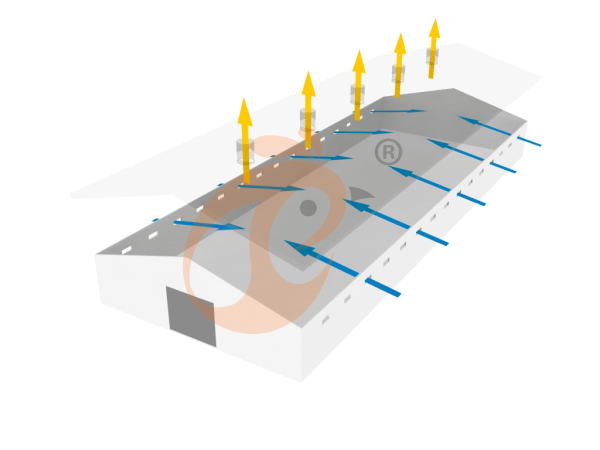

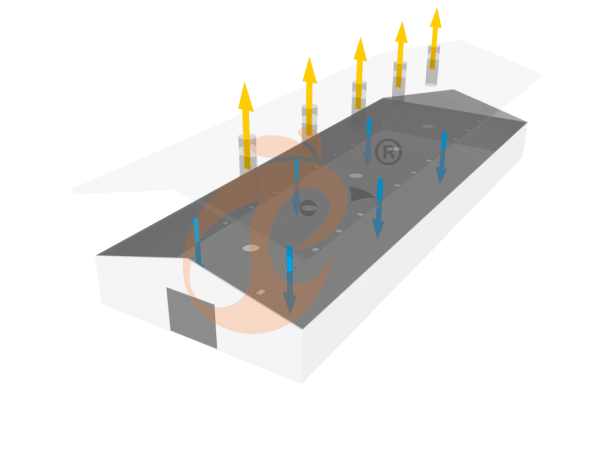

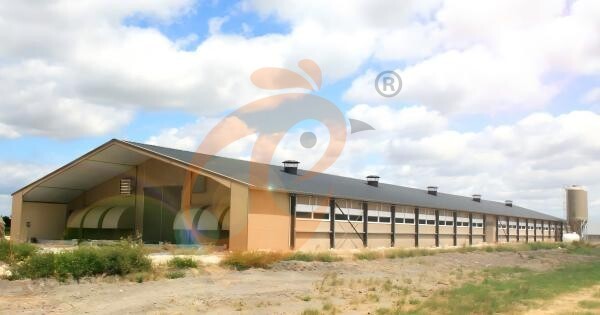

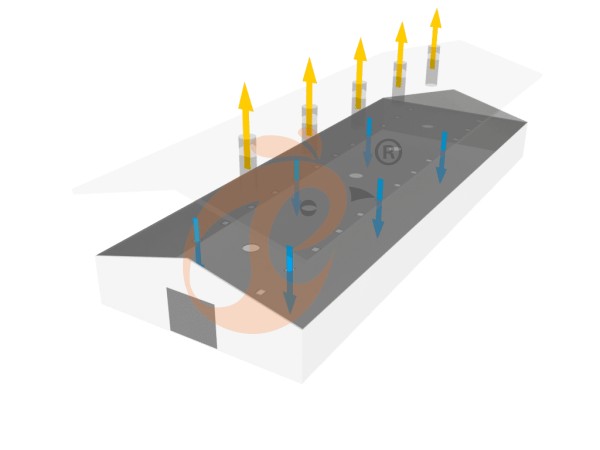

Brief introduction of ventilation and temperature control system

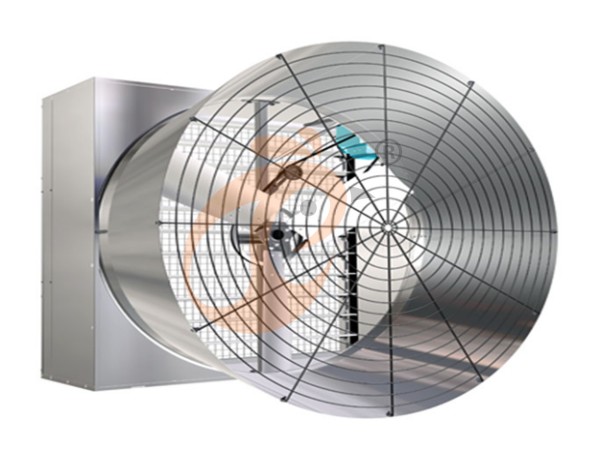

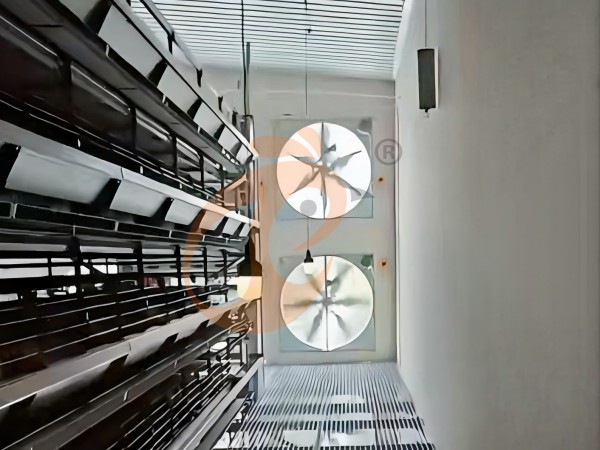

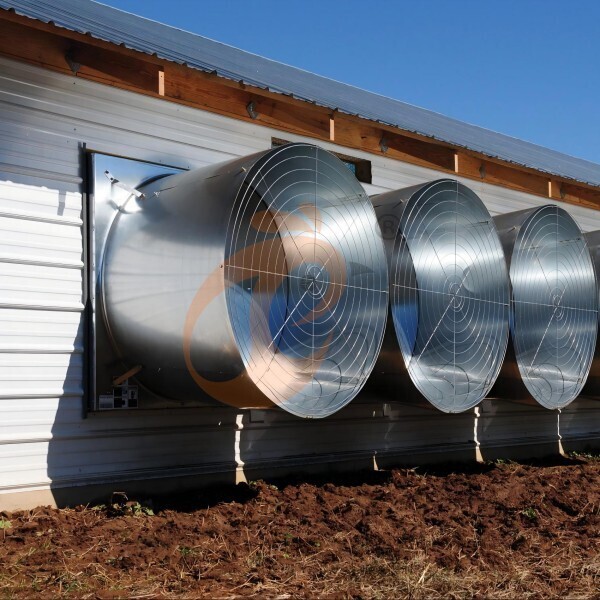

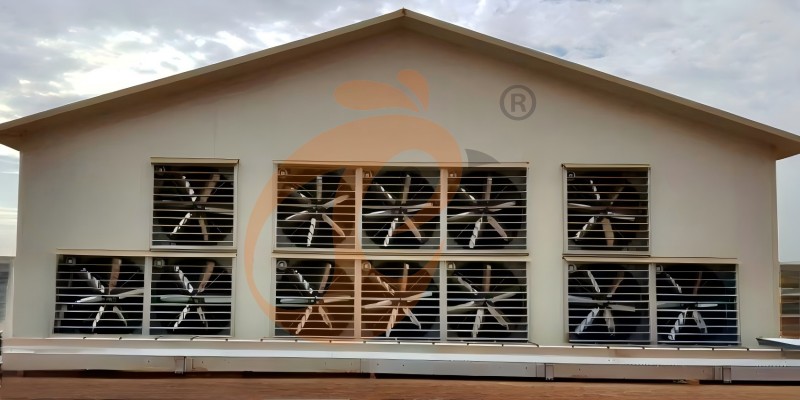

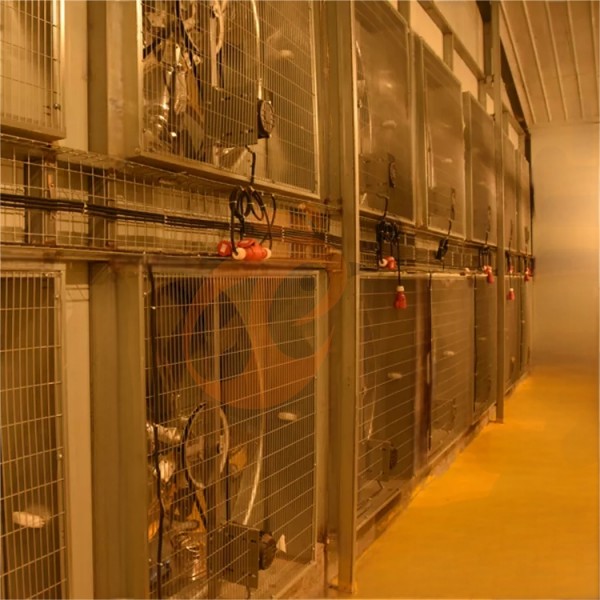

Fans

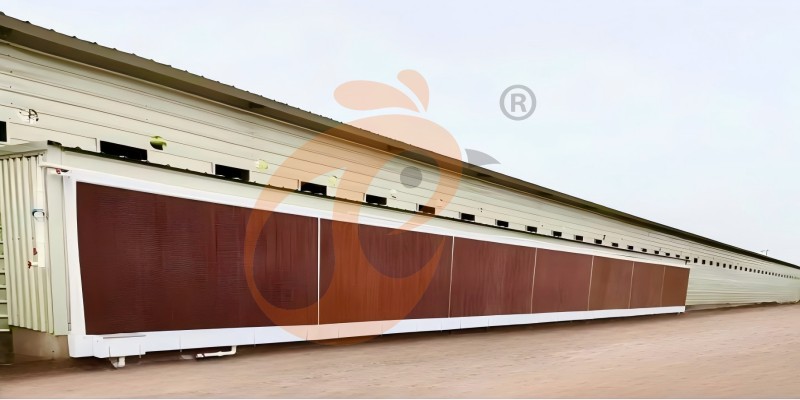

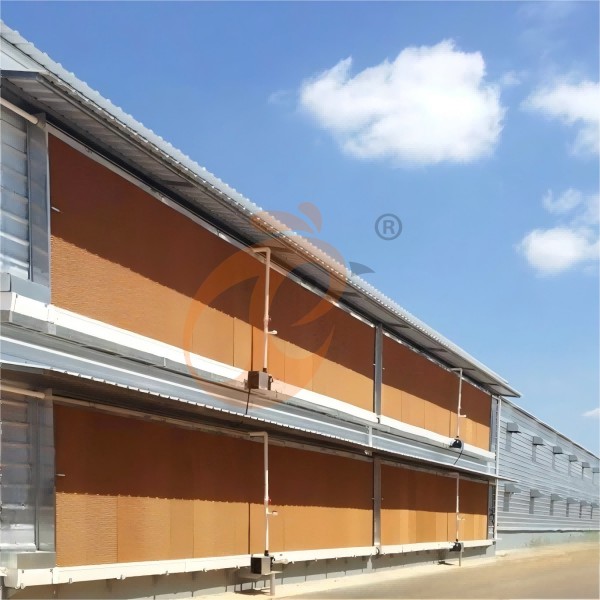

Wet pad

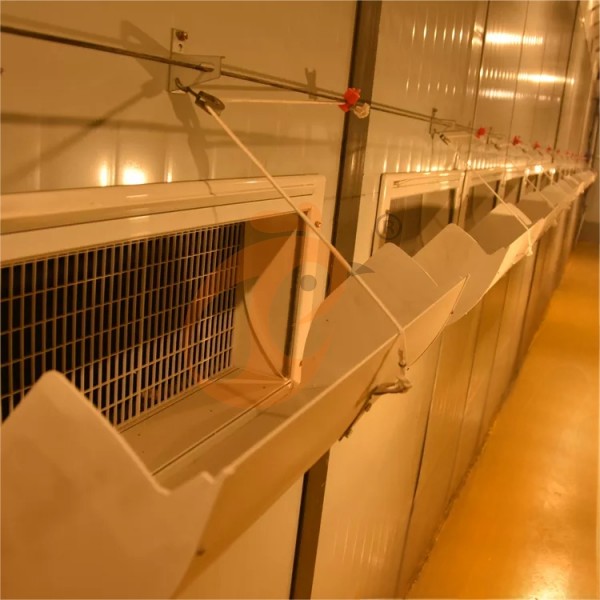

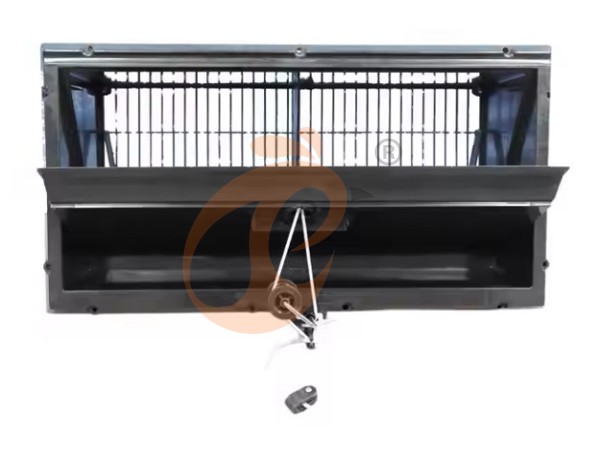

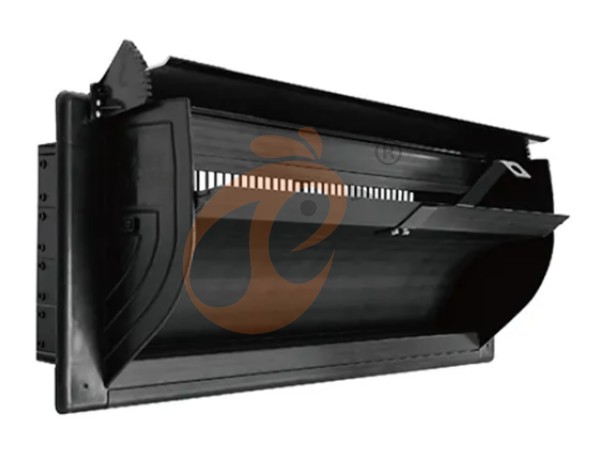

Air inlet window

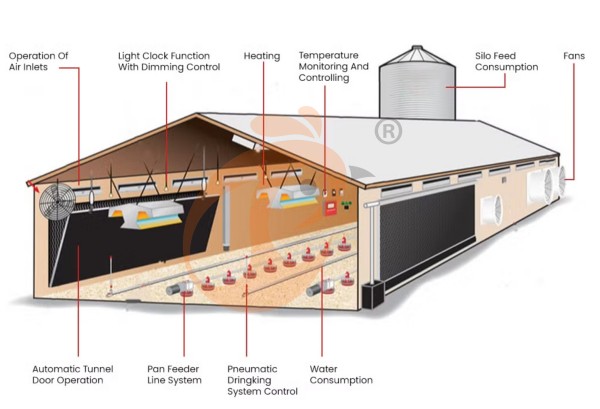

This is an integrated environmental management platform.

The central controller acts as the brain, collecting real-time data from distributed temperature and humidity sensors and coordinating actuators such as fans, cooling pads, heaters, and auxiliary curtains through AI algorithms and presetting programs.

The system maintains a stable microclimate, unaffected by external weather, ensuring optimal growth conditions. It dynamically adjusts airflow, temperature, and humidity, reducing heat stress and mortality risk while providing detailed reports to support feed management, lighting schedules, and health monitoring.

Characteristic of ventilation and temperature control system

Ventilation in turnkey poultry farm project

1. Precise control: Temperature control accuracy up to ±0.5℃ and humidity control accuracy ±5% RH, ensuring optimal microclimate for chickens at different growth stages.

2. Energy efficiency: EC frequency conversion motors save over 30% energy compared to traditional AC motors, reducing long-term operational costs.

3. Uniform distribution: Negative pressure ventilation design ensures even airflow with temperature differences within 1.5℃, avoiding local overheating or over cooling.

4. Intelligent connectivity: Supports remote monitoring, automatic data recording, and AI optimization, allowing real-time adjustment and alerts via PC or mobile devices.

5. High reliability: Critical components are designed for over 50,000 hours of operation, ensuring long-term stability in high-density poultry environments.

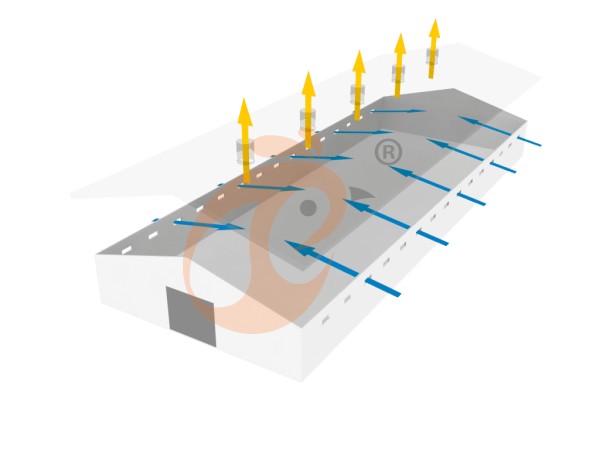

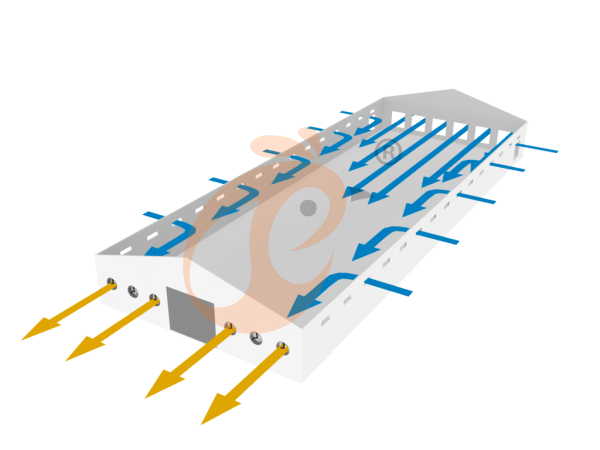

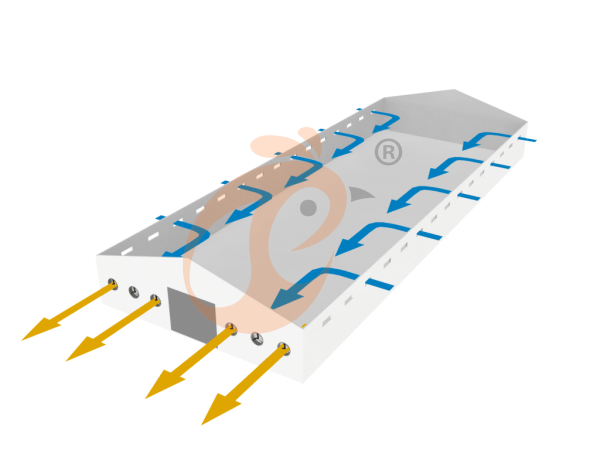

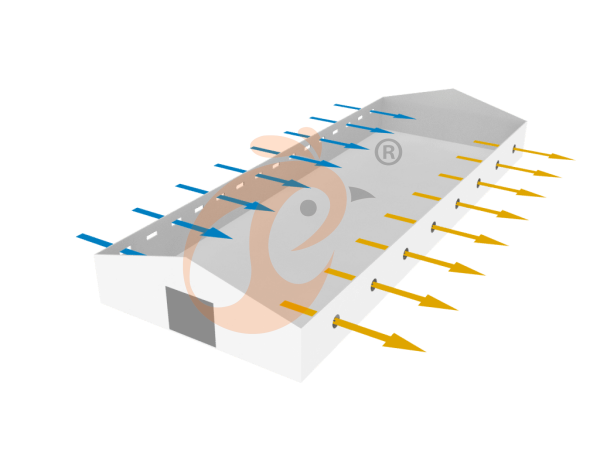

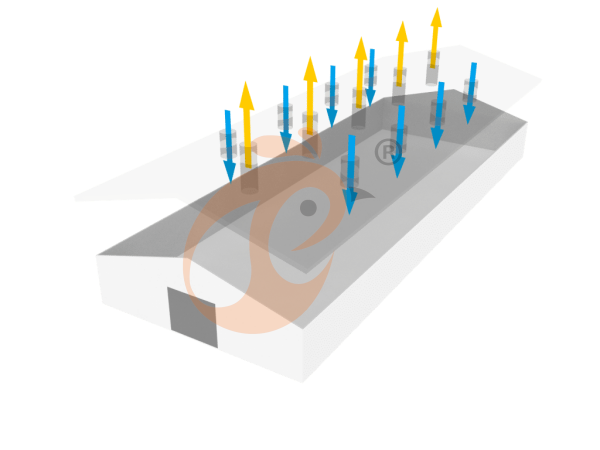

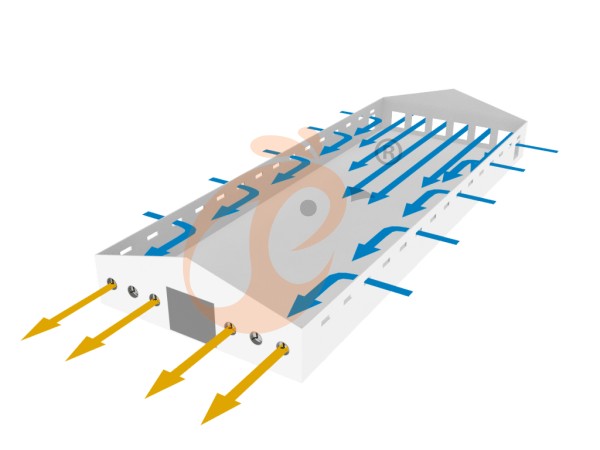

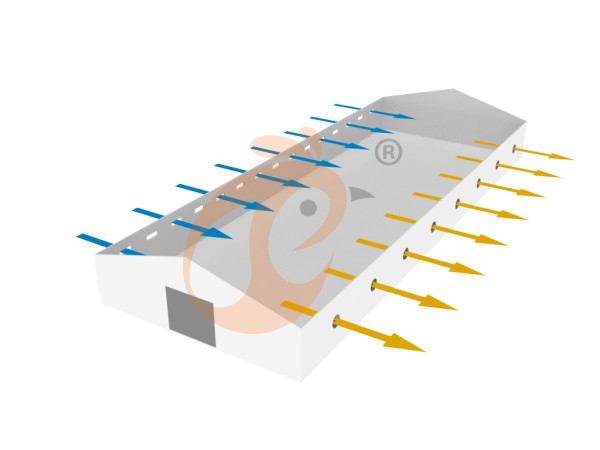

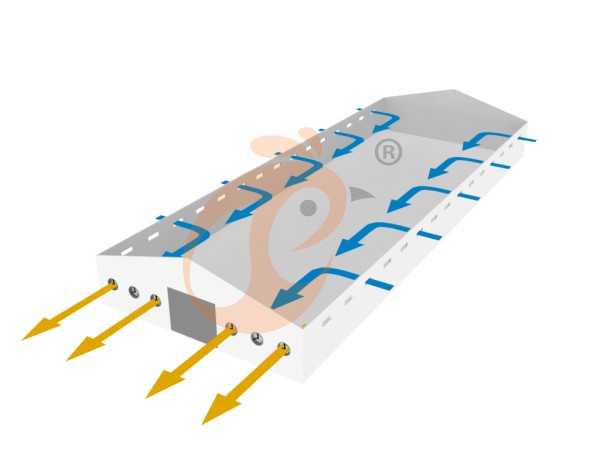

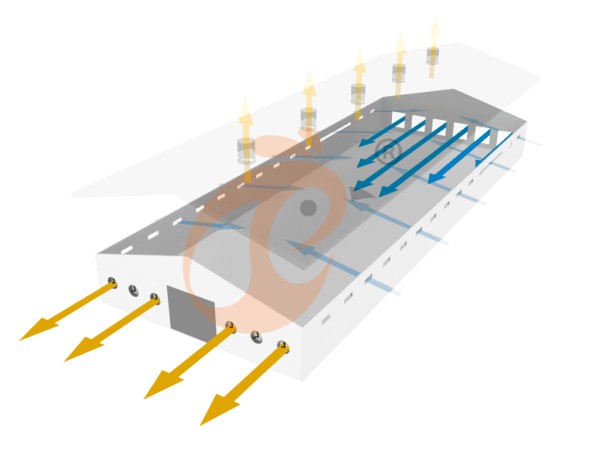

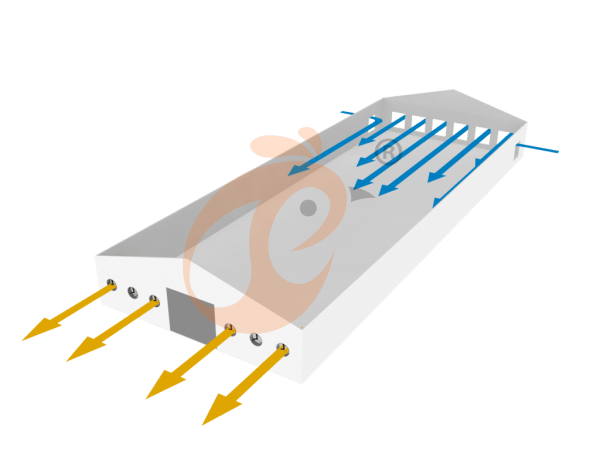

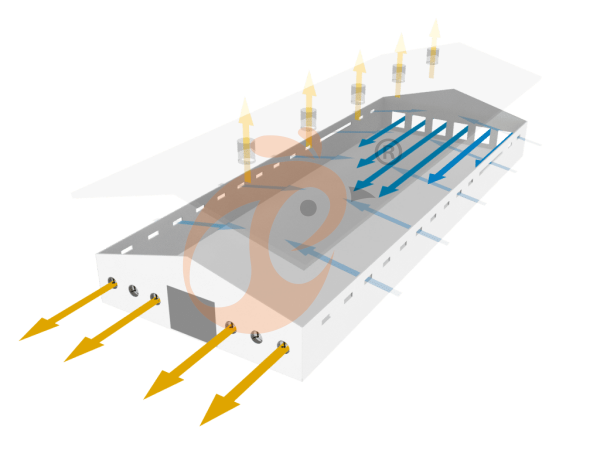

6. Multi-scenario adaptability: Can flexibly meet the different temperature and ventilation requirements of layer houses, broiler houses, and chick rearing houses, compatible with multiple ventilation modes such as lateral circulation, tunnel ventilation, and mixed airflow.

Sample of ventilation and temperature control system

Slide the table to view the complete content. The data is for reference only.

Application of ventilation and temperature control system

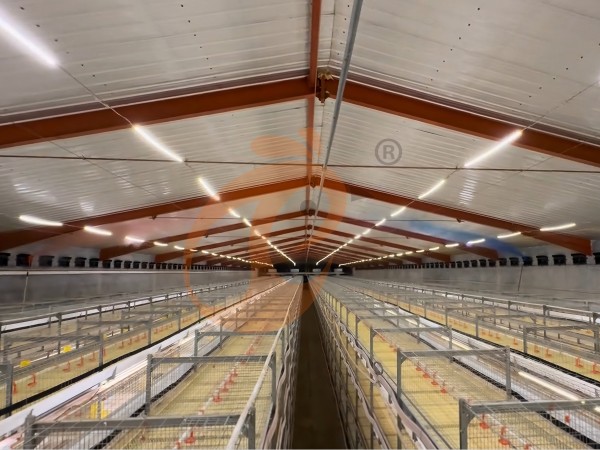

1. Layer houses

Poultry cage system

(1) Maintain a stable, stress-free environment during the laying period.

(2) Key parameters: ammonia < 25ppm; temperature constant during lighting cycles.

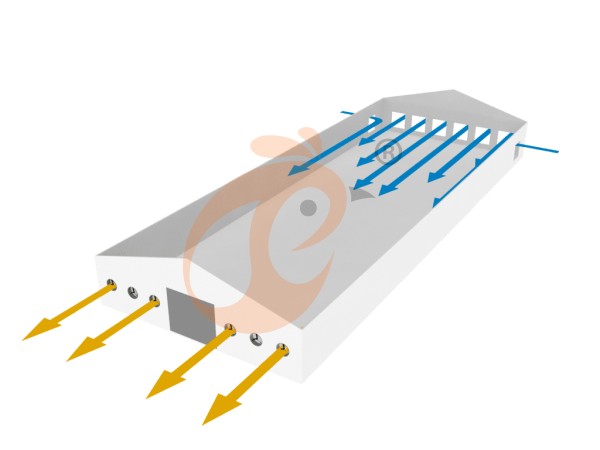

(3) Use tunnel ventilation to quickly remove harmful gases and dust.

(4) Integrate precise feed distribution to optimize feed-to-egg ratio (~2.0:1).

(5) Result: improved egg quality and production performance.

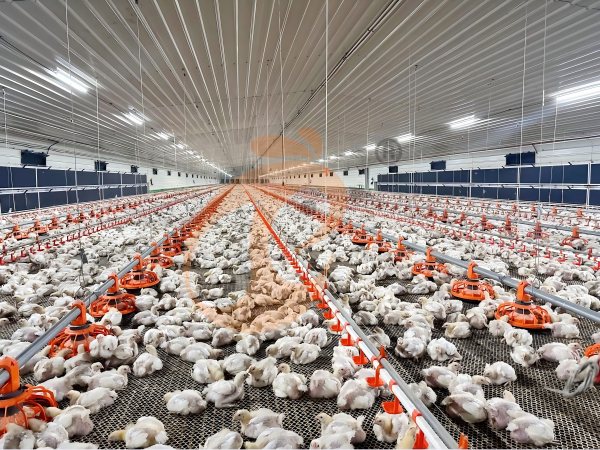

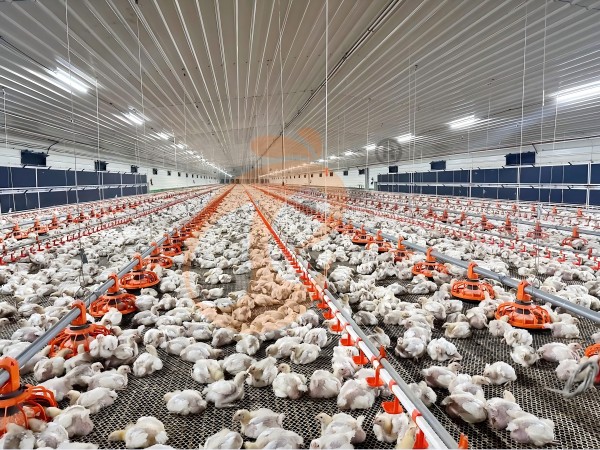

2. Broiler houses

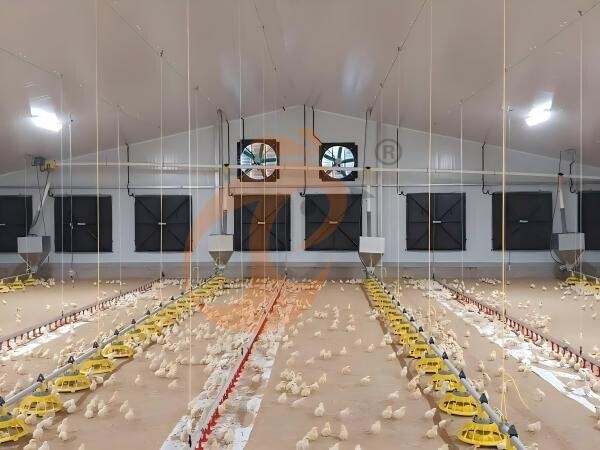

Broiler deep litter system

(1) Designed for rapid weight gain at each growth stage.

(2) Temperature management: start at 35℃ for brooding, decrease 2–3℃ weekly to 20–22℃ at market age.

(3) Ventilation volume increases with age to ensure oxygen supply and moisture removal.

(4) Result: mortality rate maintained below 5%, optimal growth performance.

3. Chick/young bird houses

Chick deep litter system

(1) Focus on absolute temperature stability and gentle airflow.

(2) Minimum ventilation ensures air exchange without drafts.

(3) Heating via hot water radiators or forced hot air.

(4) Maintain temperature fluctuation within ±1℃.

(5) Result: healthy early-stage development and reduced stress.

Working principle of ventilation and temperature control system

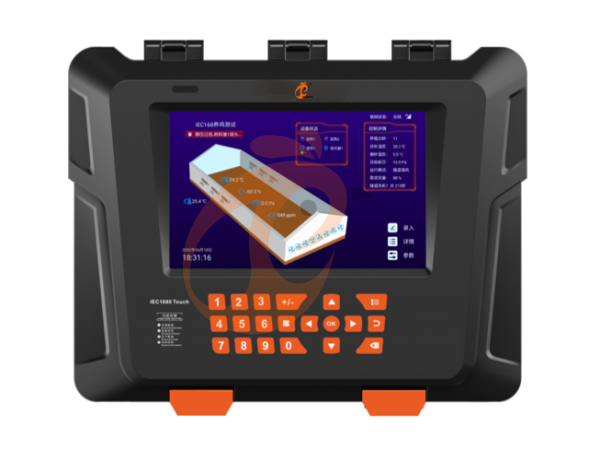

1. Controller unit

Full data collection

On site data screen

Fittings

Central intelligent controller, touchscreen display, remote connectivity module, sensors interface ports.

Working process

• Collects real-time temperature, humidity, and airflow data from distributed sensors.

• Analyzes environmental conditions using pre set programs and AI algorithms.

• Sends operational commands to all connected devices, including fans, inlet windows, and cooling pads, to maintain the target microclimate.

• Provides remote monitoring and data visualization via mobile app, tablet, or PC.

2. Automatic heater

Fittings

Gas brooder, electric brooder / heating plate, hot air blower, air source heat pump.

Working process

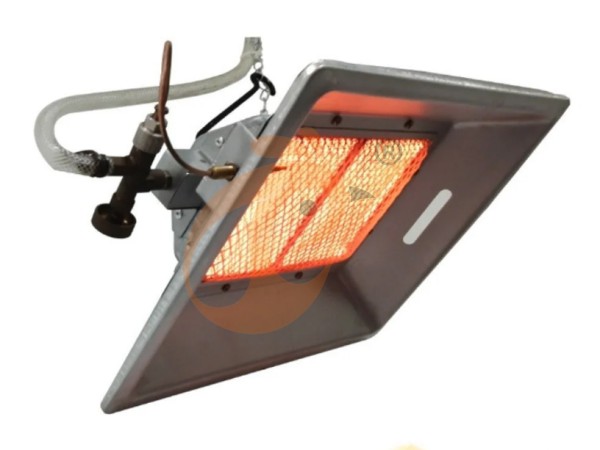

• Gas brooder: Heats the air or brooding area by burning natural gas or liquefied gas. The heat is transferred to the chicks through convection or radiation.

• Electric brooder / heating plate: Electric current passes through a heating element, generating heat. Chicks receive warmth by touching the heated plate or via radiant heat.

• Hot air blower: Electrically heats the air and uses a fan to blow the warm air into the brooding area, providing uniform heating through convection.

• Air source heat pump: Absorbs heat from outdoor air, compresses it to increase temperature, and delivers the heat to the brooding area. It is energy-efficient and has low power consumption.

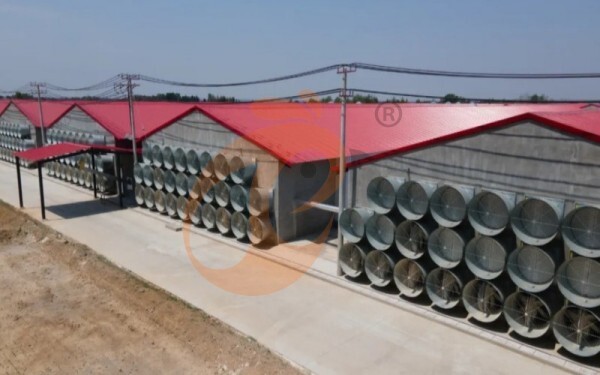

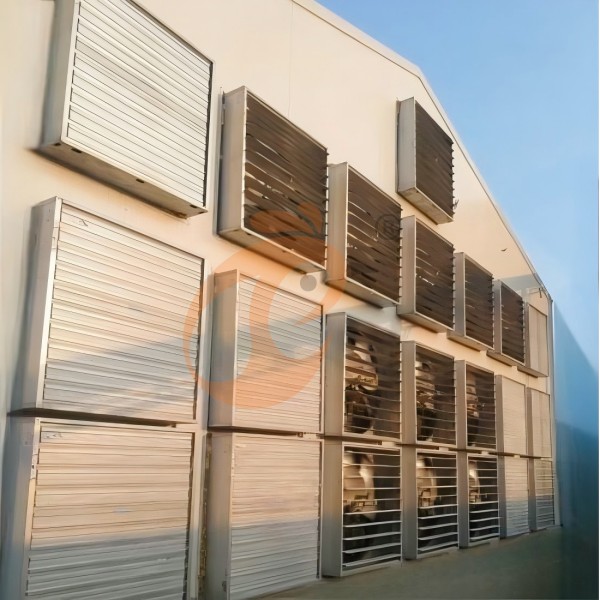

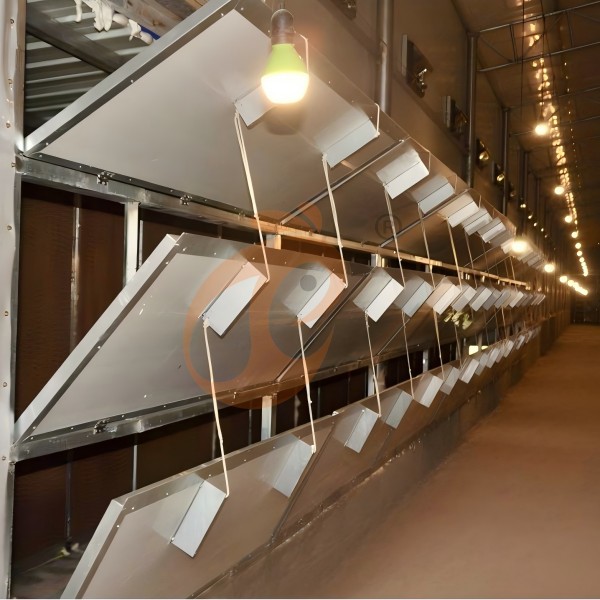

3. Inlet windows and ventilation fans

Inner poultry house

Outside poultry house

Fittings

Adjustable inlet windows, EC frequency conversion fans, mounting brackets, wiring accessories.

Working process

• Inlet windows control the direction and amount of incoming air based on controller instructions.

• Exhaust and circulation fans create negative pressure to draw fresh air evenly throughout the poultry house.

4. Cooling pad system

Fittings

Evaporative cooling pads, water circulation pump, water reservoir, anti-algae filter.

Working process

• Water is pumped over cooling pads when temperature exceeds the set threshold.

• Incoming air passes through pads; evaporation absorbs heat and lowers air temperature.

5. Alarm and safety system

Fittings

Power failure alarm, temperature/humidity abnormality sensors, backup battery, mobile/PC notification module.

Working process

• Monitors system status and detects equipment malfunction or abnormal environmental parameters.

• Sends instant alerts to farm personnel via app, email, or SMS.

• Initiates emergency shutdown procedures if necessary.

Maintain of ventilation and temperature control system

1. Fans: Lubricate bearings every 2,000 operating hours; clean blades monthly and check screws.

2. Cooling pads: Rinse with low-pressure water before the season; clean circulation tank weekly to prevent algae.

3. Sensors: Wipe probes monthly with dry soft cloth to maintain accuracy.

4. Controllers: Inspect terminal connections regularly; backup parameters; ensure software is up-to-date.

5. Curtains and inlet windows: Check flexibility and sealing quarterly to ensure uniform airflow.

6. Pumps and pipes: Inspect quarterly for leaks, blockages, and proper water flow.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.

Recommended related chicken cage

To learn more, please visit product list...

Tips of selecting chicken cage and poultry farm equipment

For reference only, it depends on your actual demands and situation of your poultry farm.
