European Standard H Type Automatic Battery Cage

Quick viewing of H type automatic battery cage

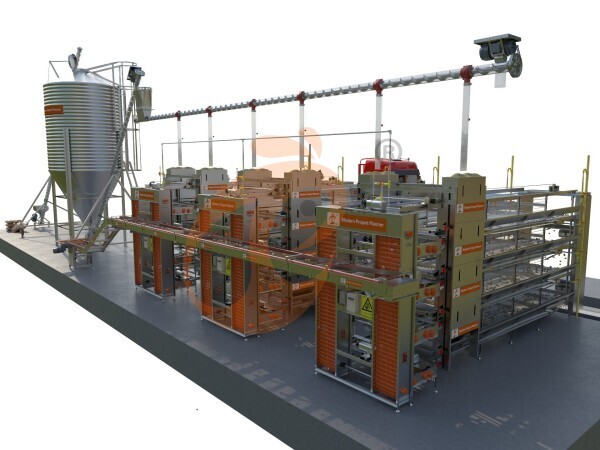

3D H type automatic battery cage design

Gain a clearer understanding of its overall picture from different perspectives.

The advantage of "H" design

1. It is highly suitable for large-scale commercial egg production with 30,000, 50,000, 80,000, 100,000 or even 1,000,000 chickens poultry farms

2. 1-3 person can manage a house with 100,000 chickens

3. Fully automatic from feed mill, feeding, egg collection to packing, manure collection and drying

H type battery cage structure

Sample in factory showing to helps you quickly understand its structural performance

1. Transfer layers into layer chicken cage: workers put 12 weeks to 16 weeks old layers into layer chicken cage

2. Drinking: layers are drinking cyclic medicine water by touching nipple drinker of automatic drinking system

3. Eating: layers are eating feed by automatic feeding system

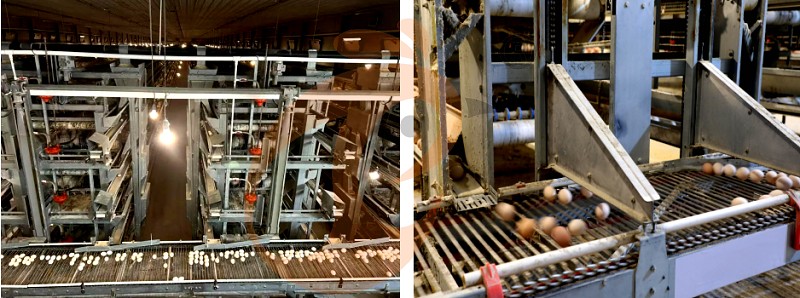

4. Egg collecting: eggs are collected by automatic egg collection system

5. Manure cleaning: manure are moved out by automatic manure removal system

To obtain your farm-specific plan, please Whatsapp 24 hours online/Mobile: +86 18830120193, +234 8111199996

How its layout in poultry house?

A shorter video showing

1. Normally coming with feed silo, to be a completed automatic egg production line

2. 2 rows or 3 rows

3. 40,000 chickens to 150,000 chickens/house

Taiyu Group 's hot sale type of H type battery cage

1. Hot sale type 1

- Tiers: 4 tiers

- Capacity/set: 128 chickens

- L X W X H: 1.25m by 1.25m by 3.0m

- House Size: 50 x 10 x 5.8-17 (L x W x H): 12,672 birds

- House Size: 100 x 10 x 5.8-17 (L x W x H) 28,800 birds

2. Hot sale type 2

- Tiers: 8 tiers

- Capacity/set: 160 chickens

- L X W X H: 1.25m by 1.25m by 7.0

- House Size: 50 x 12 x 4.15-5.25 (L x W x H): 25,344 birds

- House Size: 100 x 12 x 4.15-5.25 (L x W x H): 57,600 birds

3. Hot sale type 3

- Tiers: 12 tiers

- Capacity/set: 384 chickens

- L X W X H: 1.25m by 1.25m by 10.3

- House Size: 50 x 12 x 4.15-5.25 (L x W x H): 38,016 birds

- House Size: 100 x 12 x 4.15-5.25 (L x W x H): 86,400 birds

To obtain the quotation, please Whatsapp 24 hours online/Mobile: +8618830120193, +2348111199996

Taiyu Group's poultry farm equipment case

1. Case 1: 4 tiers of H type automatic battery cage

2. Case 2: 5 tiers of H type automatic battery cage

3. Case 3: 8 tiers of H type automatic battery cage

Why cooperate with Taiyu Group or choosing Taiyu Group's poultry farm equipment?

15 Mins Video Showing Mins Showing Products, Production Department, QC, Logistics Department, Customer Cases...

Taiyu Group owns office and factories branches in China, Ethiopia, Tanzania and Nigeria.

1. You will have the world-class quality while costs are reduced by 20%

The research and development keep talking with Euro and USA engineers, but produce in China or other branches.

2. Your egg production rate is over 98% together with high-quality feed formulas

From European design style, our structure is more suitable for the activities of layers.

3. You can quickly obtain all the data of their poultry farm

We have artificial intelligent management system, such as viewing the data of feed consumption, growth rate and so on of all chicken houses through the APP installed on your mobile phone, I-pad or computer.

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm equipment list with quotation.

Recommend products

1.  Prefabricate poultry house

2. IoT smart poultry farming system

Detailed Introduction Of H Type Automatic Battery Cage

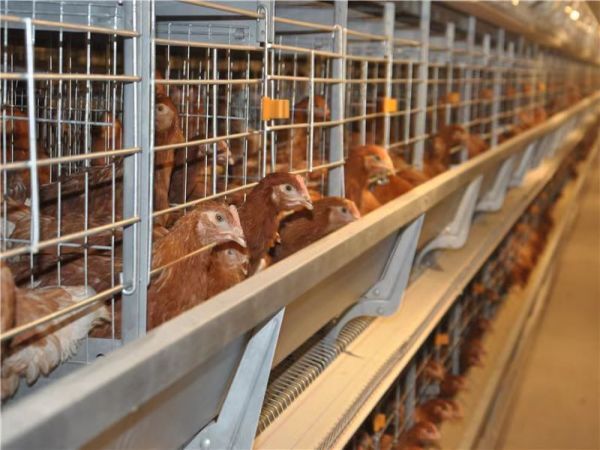

Sample of automatic H battery cage

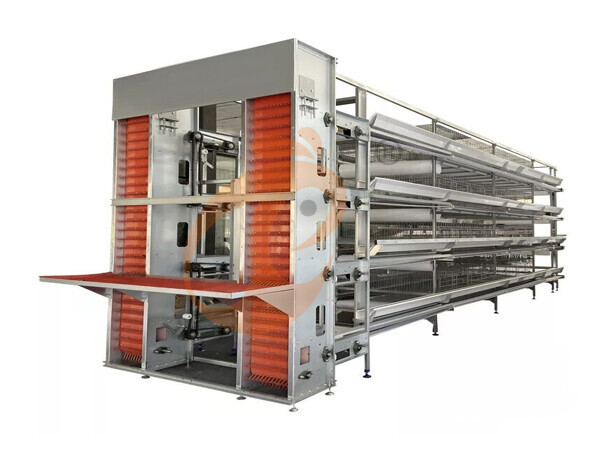

1. The number of tier ranges are from 3 to 12, it can be customized based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

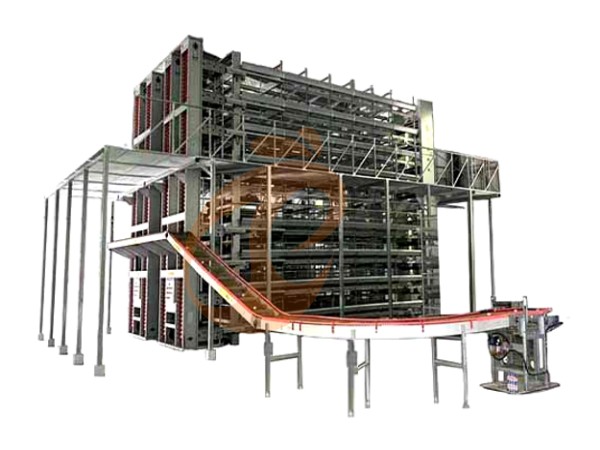

2. The sample pictures show the automatic H 4-tier layer chicken cages and the automatic H 8-tier layer chicken cages.

Application of automatic H type battery cage

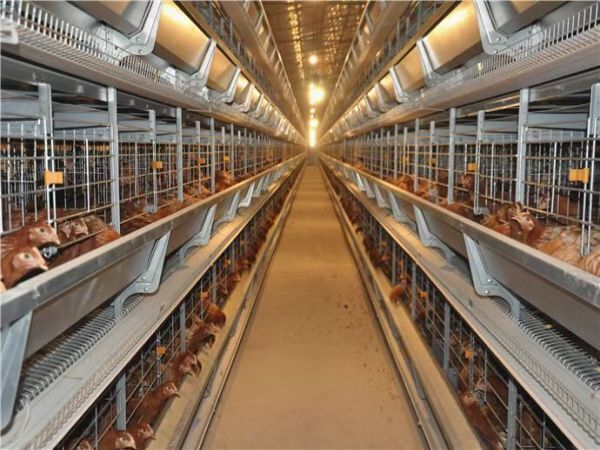

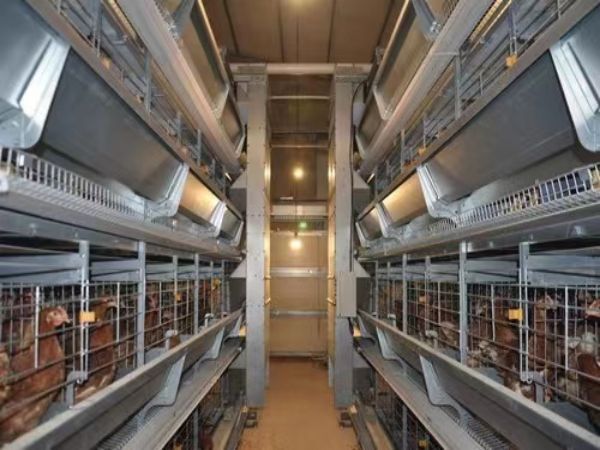

• The following picture shows the application case of our company's customized automated H layer chicken cages in American poultry farm.

• The photo was taken in 2020, the poultry farm was completed in 2005.

• The customer has chosen automated H 8 tier layer chicken cage with equipment.

Quantity of layer/chicken house

For your reference only, the following data are is estimated, The exact data is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

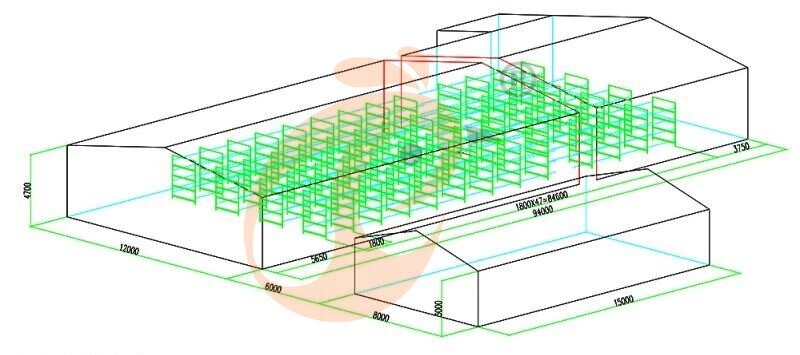

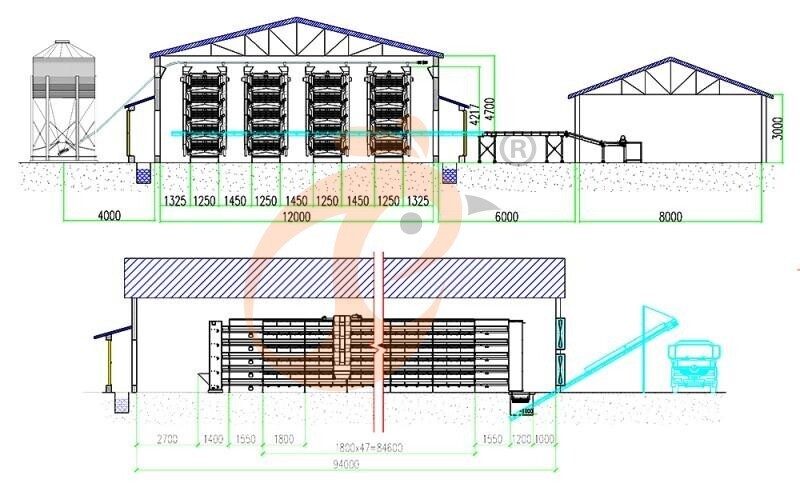

Layout of 50,760 layers/layer chicken house

1. Building dimension: 94* 12* 4.7 meters

2. Number of cage tiers: 5 tiers

3. Number of cage lines: 4 lines

4. Total section each line: 47 sections

5. Total section in one house: 188 sections

6. Total birds each house: 50,760 birds

7. For reference only

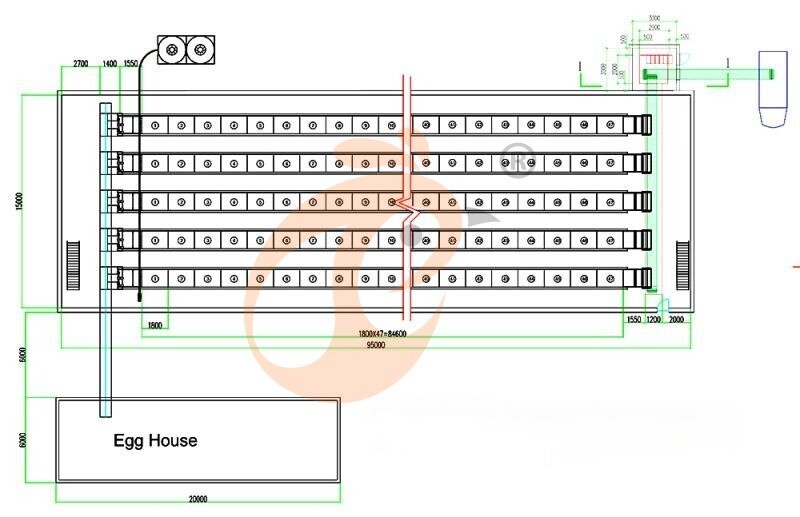

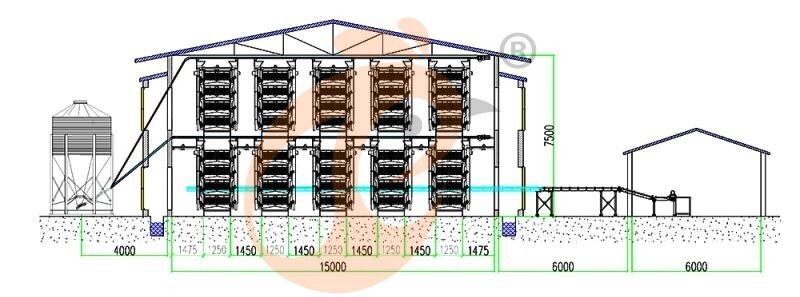

Layout of 100,000 layers/layer chicken house

1. Building dimension: 95* 15* 7.7 meters

2. Number of cage tiers: 8 tiers

3. Number of cage lines: 5 lines

4. Total section each line: 47 sections

5. Total section in one house: 235 sections

6. Total birds each house: 101,520 birds

7. For reference only

Size of automatic H type battery cage

For reference only,

The exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Accept customers'special sizes.

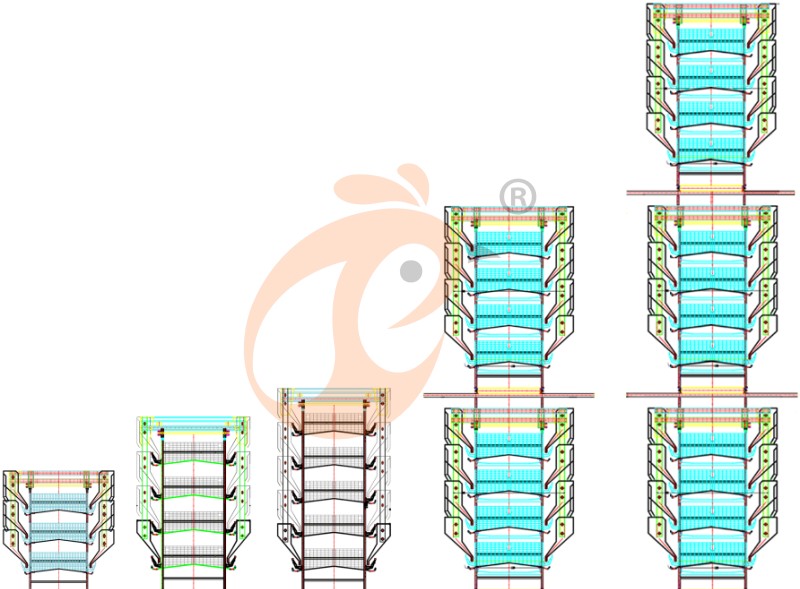

Here is drawing of 3 tiers, 4 tiers, 5 tiers, 8 tiers, and 12 tiers of layer chicken cage.

Fittings of layer battery cage

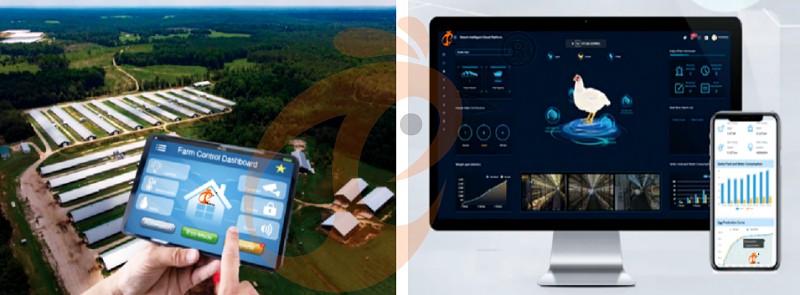

1. Vcloud artificial intelligent fusion

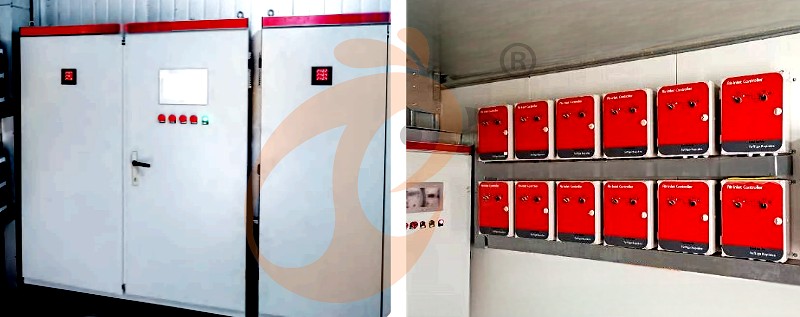

2. Electric control cabinet

3. Layer chicken cage body

4. Frame of layer chicken cage system

5. Automatic drinking system

6. Automatic feeding system

7. Automatic egg collection system

8. Automatic manure removal system

9. Installation tools

Material of layer battery cage

1. Galvanized steel and stainless steel pipe and plate.

2. Motor, electric wire, circuit board, sensor, touch screen.

3. Galvanized steel, stainless steel, plastic and imported fittings, installation tools and so on.

Working principle of layer battery cage

1. Vcloud artificial intelligent fusion

Fittings

App, hardware

Working process

• Provide comprehensive data

View the data of feed consumption, egg production quantity, water consumption, drug consumption, house climate, solar power system and so on of each chicken house and all chicken houses through the APP installed on your mobile phone, I-pad or computer.

• Order the equipment to operate

Give instructions to each automated device to start up, run and shut down at scheduled times.

• Alarm and shut down systems and equipment when any equipment in the layer chicken farm or layer chicken house operates abnormally for the following reasons

(1) The power supply voltage exceeds the limit, phase failure or three-phase imbalance occurs;

(2) The motor current exceeds the limit or the power exceeds the limit;

(3) Exceed the rated current;

• Monitor the power supply voltage, motor current, sensor operating status and so on in real time.

2. Electric control cabinet

Fittings

Electrical control boards, electrical control cabinets, alarm system cabinets, cables, wires, connecting accessories, etc.

Working process

Controls walking and stopping of the feeding equipment, egg collection equipment and manure removal equipment.

3. Layer chicken cage body

Fittings

Layer chicken cage nets, cage doors, connecting accessories, etc.

Working process

Layers walk, drink water, lay eggs and engage in other daily activities inside the layer chicken cage.

4. Frame of layer chicken cage system

Fittings

Frames of automatic equipment, adjustment screws of frame legs, connecting accessories, etc.

Working process

Supporting the whole layer chicken cage system and automatic equipment.

5. Automatic drinking system

Fittings

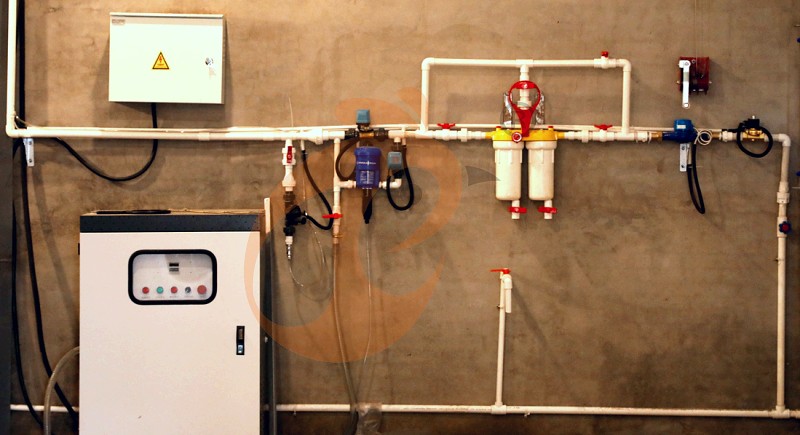

Automatic drug dosers, water filters, water pressure regulators, water tank, water pipes, water troughs, nipple drinkers, automatic cleaning device, connecting accessories, etc.

Working process

Water flows successively into the drug dosers, water filters, water pressure regulators, water tanks, water pipes, nipple drinkers. Layers drink water by touching the nipple drinkers. The automatic cleaning device regularly cleans the whole drinking system.

6. Automatic feeding system

Fittings

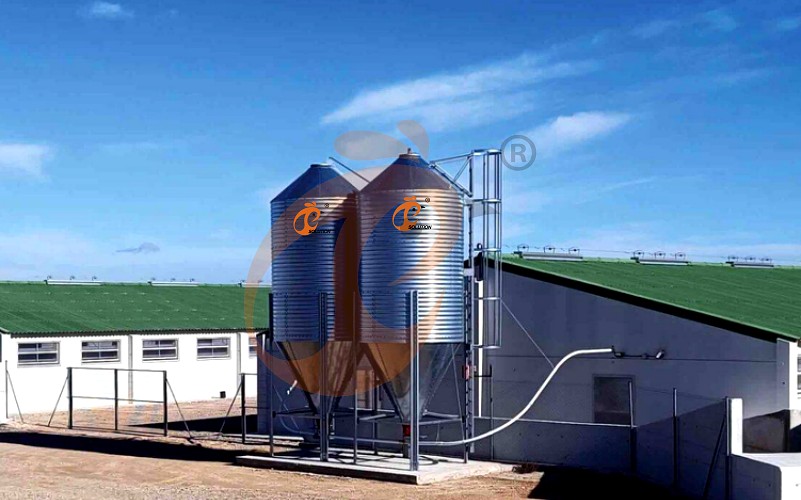

Feed storage silos, transverse feed spiral augers, feed elevator equipment, feed weigher, feeding carts, feed average system, feeding carts' towing orbits, connecting accessories, etc.

Working process

Feed storing in silo in successively into feed elevator equipment, transverse feed spiral augers, feeding carts, and feeding troughs, layer eat it.

7. Automatic egg collection system

(1) Type 1

Fittings

Egg belts, egg convey fittings, egg belt clips, row ending egg collection machines, connecting accessories, etc.

Working process

Eggs successively roll on egg belts, row ending egg collection machines, eggs are picked by workers.

(2) Type 2

Fittings

Egg belts, egg convey fittings, egg belt clips, row ending egg collection machines, horizontal lift convey equipment, horizontal convey outside layer chicken house, connecting accessories, etc.

Working process

Eggs successively roll on egg belts, row ending egg collection machines, horizontal lift convey equipment, horizontal convey outside layer chicken house, to the egg house finally.

8. Automatic manure removal system

Fittings

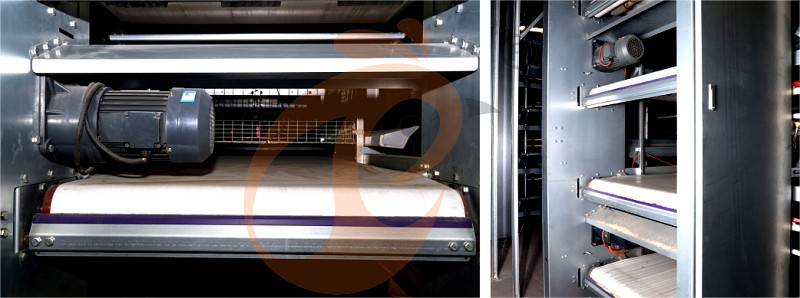

Manure belts, belts' frames, rollers, row ending manure collection equipment, horizontal manure convey equipment inside layer chicken house, slant manure conveyor equipment outside chicken house, connecting accessories, etc.

Working process

Layers’ waste is successively dropped on manure belt under bottom cage mesh, row ending manure collection equipment, horizontal manure convey equipment inside layer chicken house, slant manure conveyor equipment outside layer chicken house, to the tuck finally.

Package of battery cage

All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.

Transportation of battery cage

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

Installation of battery cage

1. We will send to you installation guide by email if you importing layer chicken cage or poultry equipment from China branch, will send engineers for your customized orders to guide the installation and testing of the equipment.

2. Local service of installation from branches of Ethiopia, Tanzania and Nigeria. We have installation teams.

Maintain of battery cage

1. After installation is completed, clean and disinfect the entire set of equipment first.

2. Daily disinfect and sterilize the chicken house to reduce the incidence of avian influenza and other diseases.

3. Daily check motors and add oil if necessary of corollary system to make sure well working.

4. Daily check the drinking device to ensure that the water quality in the entire drinking water system is good.

5. Daily check the device of feeding, egg collection and manure removal equipment to ensure that the entire system is operating well.

6. Monthly check other plastic and steel fittings, connectors and so on every to make sure well working.

7. Every time clean layer chicken cage system and corollary system after move all layers out, or before put new layers.

Equipment matching opening chicken house and closed chicken house

For your reference only, it is based on the actual needs of the poultry farm and customers.

Working process

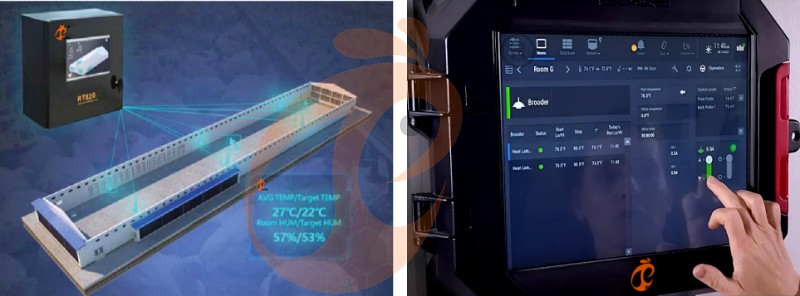

• Climate control system
