European Standard Curtain System

Our design and quality of curtain system and equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

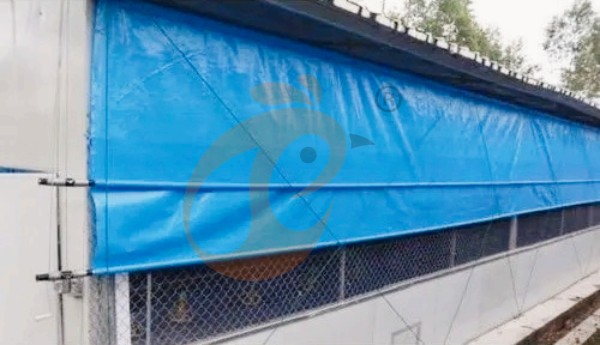

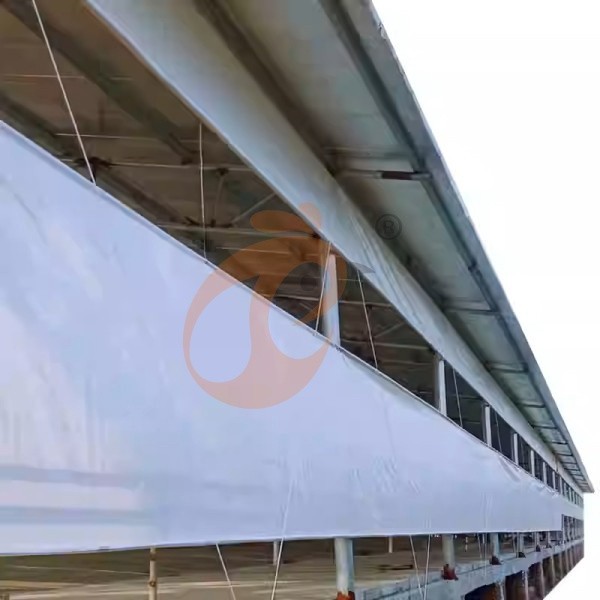

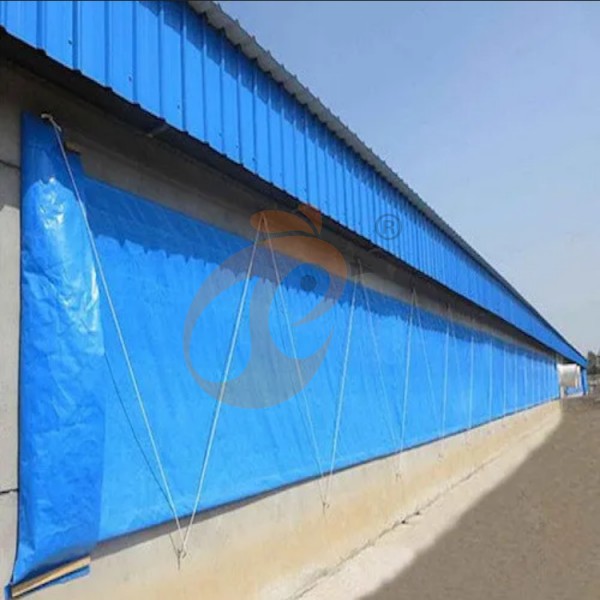

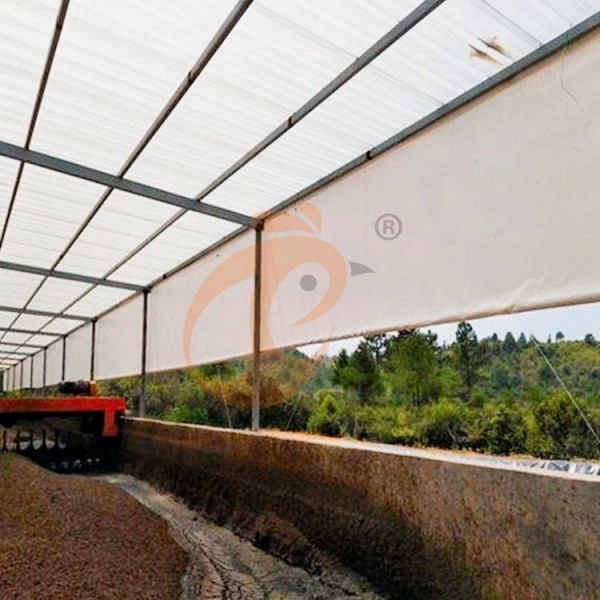

All pictures (or videos) of this pages are the application of our curtain system in customers' projects. Our technicians have rich experience in localizing projects.

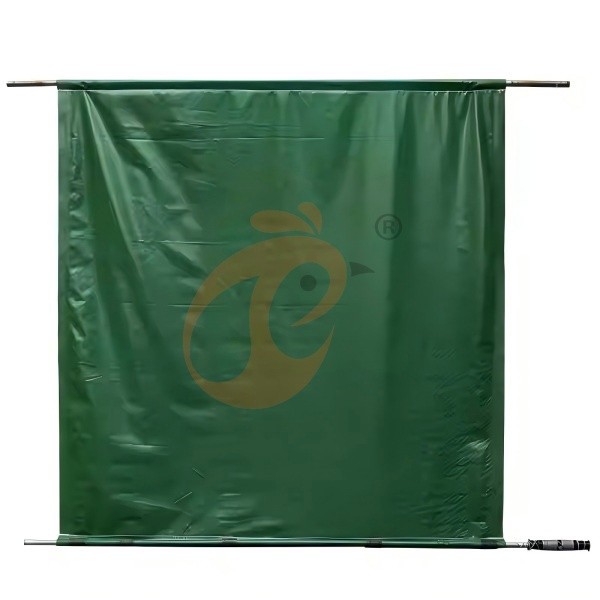

Sample of curtain system

Slide the table to view the complete content. The data is for reference only.

Brief introduction of curtain system

1. Automated curtain systems regulate airflow and microclimate in poultry houses, enhancing bird welfare and productivity.

2. Available curtain fabrics include PE 200±10 g/m² (white) and PVC 500±30 g/m² (black/silver), both with optional UV protection.

3. The PE option is lightweight and suitable for moderate climates, while PVC offers higher durability for harsh conditions.

4. The system integrates with IoT-enabled motors, providing real-time monitoring and remote control via mobile or web applications.

Application of curtain system

1. Broiler houses: optimize temperature consistency, reduce heat stress, and improve feed conversion ratios.

2. Layer houses: stabilize climate for improved egg production and reduced mortality.

3. Pullet rearing: maintain controlled airflow for early growth stages, minimizing respiratory diseases.

4. Integrated with ventilation systems, the curtain system ensures effective air distribution without risk of inward collapse.

5. Stepwise adjustment reduces labor while maintaining consistent environmental conditions, supporting energy-efficient farm operations.

6. IoT sensors can be linked to ventilation controllers to dynamically regulate curtain positions according to temperature, humidity, and CO₂ levels.

Why choosing and cooperate with Taiyu Group?

Hong Kong Headquarter, China, Ethiopia, Tanzania and Nigeria branch and factory supplying poultry farm solution with keeping talking with Euro and USA engineers.

Here is a 15 mins video showing mins showing poultry farm equipment, production department, QC, logistics department, customer cases...

1. Abundant practical experience – Founded in 2011, Taiyu Group has provided turnkey project solution, high-quality poultry battery cages and farm equipment to over 100 countries.

2. Fast and convenient delivery – With ready stock, orders paid in the morning can be delivered the same day or the next day in branches.

3. Easy after-sales support – Our team offers prompt and professional service to farmers of all sizes, ensuring your farm runs smoothly.

Learn completed house climate system, please find out:

Ventilation and temperature control system

Recommend poultry farm equipment you may need

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm business plan and equipment list with quotation.

Our design and quality of poultry equipment based on European and USA standard.

Characteristic of curtain system

1. Automatic control motor delivers stable operation with heavy loads, minimizing mechanical failure. Rated power: 1.5–3.0 kW, operating voltage: 220V/380V, speed 0.5–0.7 m/min. The motor is equipped with thermal protection and low-noise operation, suitable for continuous use in large poultry houses.

2. Corner pulley constructed from nylon + glass fiber, supporting high load and facilitating smooth steering of drive cables. It is corrosion-resistant and ensures precise alignment of the curtain system.

3. Upper small pulley of POM material guides traction rope without significant wear, maintaining rope tension for years of operation.

4. Aluminum alloy clamping groove with plastic-coated spring secures curtain fabric reliably, allowing easy replacement and adjustment.

5. Geogrid reinforcement prevents curtain cloth from collapsing under NP ventilation, ensuring smooth opening and closing. The grid also distributes wind pressure evenly, reducing stress on the curtain fabric.

6. Multiple control options: manual or motorized, allowing flexible management of ventilation. The motorized system can interface with IoT sensors for automatic adjustment based on environmental conditions.

Fittings of curtain system

Slide the table to view the complete content. The data is for reference only.

Material of curtain system

1. Curtain cloth: PE 200±10 g/m² or PVC 500±30 g/m², tensile strength >1200 N, elongation ≤10%, optional UV resistance for outdoor or high-UV conditions.

2. Pulleys: nylon + glass fiber (corner), POM (guidance), each rated for high-load operation.

3. Rope: high-strength PE, diameter 12 mm, breaking load 500 kg, wear-resistant.

4. Tracks: galvanized steel, corrosion-resistant, supporting 2,000 kg, ensuring smooth curtain travel.

5. Clamping groove: aluminum alloy with plastic-coated spring, allowing precise curtain alignment and easy maintenance.

Working principle of curtain system

1. Vcloud artificial intelligent fusion Fitting

Fittings

App, hardware

Working process

Collect and analyze data from temperature, humidity, CO₂, and solar power systems. Display comprehensive metrics for each poultry house via the app on mobile, tablet, or computer.

2. Equipment control Fitting

Fittings

Motor, sensor, controller, actuator

Working process

Send commands to start, run, and stop automated devices at scheduled times. Monitor operation efficiency and adjust curtain positions dynamically for optimal ventilation.

3. Alarm system Fitting

Fittings

Sensors, siren, emergency switch, monitoring software

Working process

Detect abnormal operation in equipment. Trigger alarms and shut down systems automatically when faults, temperature deviations, or other emergencies occur, ensuring bird safety and equipment protection.

Maintain of curtain system

1. Inspect pulleys, ropes, and clamping mechanisms every 6–12 months for wear or misalignment.

2. Lubricate bearings annually; replace ropes every 2 years or when wear exceeds 5%.

3. Examine curtain fabric for stretching or tears; replace when tensile strength falls below 1,000 N.

4. IoT monitoring provides predictive maintenance alerts, enabling timely interventions and reducing unplanned downtime.

5. Keep track of environmental sensor data to schedule maintenance proactively, ensuring consistent curtain operation throughout seasonal changes.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.

Tips of selecting chicken cage and poultry farm equipment

For reference only, it depends on your actual demands and situation of your poultry farm.
