European Standard Cooling Pad System

To make you easily understanding completed poultry climate system, here are 3 videos of TaiYu (HK) Group's cases - shows the cooperation of fans, pads, airflow panel door, inlet system and the other climate equipment in the chicken house.

TaiYu (HK) Group's case 1

At 2:36s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 2

At 0:52s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 3

At 0:22s showing it and full climate system in poultry house.

Why choosing and cooperate with Taiyu Group?

Hong Kong Headquarter, China, Ethiopia, Tanzania and Nigeria branch and factory supplying poultry farm solution with keeping talking with Euro and USA engineers.

Here is a 15 mins video showing mins showing poultry farm equipment, production department, QC, logistics department, customer cases...

1. Abundant practical experience – Founded in 2011, Taiyu Group has provided high-quality poultry battery cages and farm equipment to over 100 countries.

2. Fast and convenient delivery – With ready stock, orders paid in the morning can be delivered the same day or the next day in branches.

3. Easy after-sales support – Our team offers prompt and professional service to farmers of all sizes, ensuring your farm runs smoothly.

Learn completed house climate system, please find out:

Ventilation and temperature control system

Recommend poultry farm equipment you may need

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm business plan and equipment list with quotation.

Our design and quality of cooling pad system, and equipment based on European and USA standard.

European Standard Cooling Pad System

Summary

The poultry house climate control system can automatically regulate indoor temperature, humidity, and air quality, maintaining summer temperatures at 22–28°C and winter temperatures at 18–34°C (30–34°C during the pullet phase, 18–26°C during the adult phase).

The system is equipped with components such as ventilation windows, negative pressure fans, wet pads, water circulation pumps, temperature and humidity sensors, automatic controllers, insulation panels, and heaters to achieve cooling, heating, and temperature stabilization.

Farms can also be equipped with lighting and blackout curtains to manage the flock's light exposure, further promoting healthy growth and improving production performance.

If you want a complete understanding of the system, please refer to the product list.

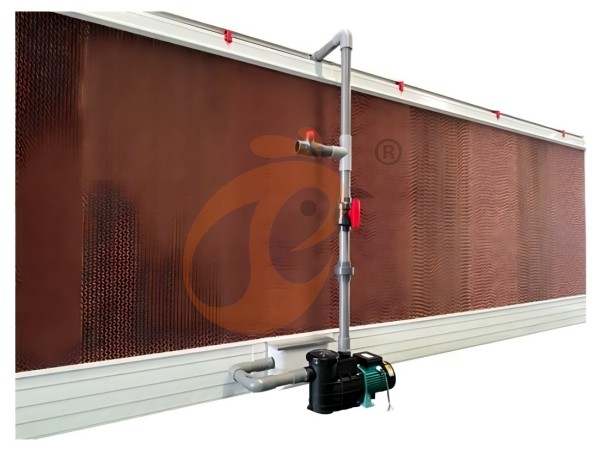

Characteristic of cooling pad system

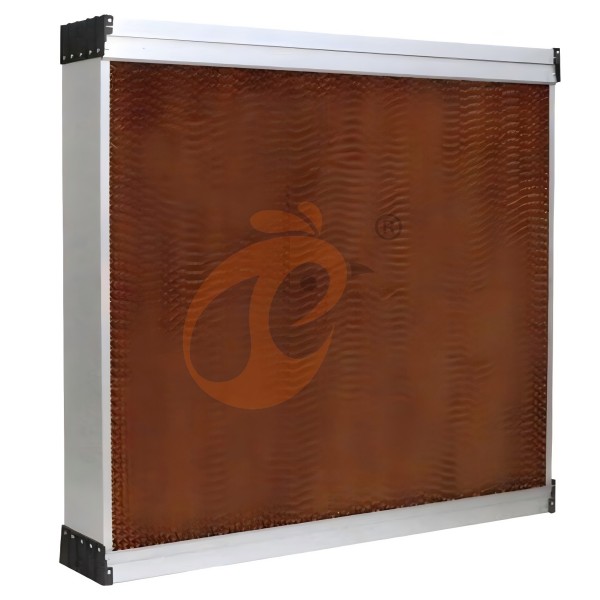

1. Corrosion-resistant aluminum frame ensures 10+ years of service under high humidity, combining strength, durability, and aesthetic design.

2. High-strength PVC water trough with 1.2–2.0 mm thickness stores water efficiently, eliminating the need for additional water pools.

3. Fine 40-mesh filtration protects spray pipes and cooling pads from impurities, preventing blockages and ensuring consistent performance.

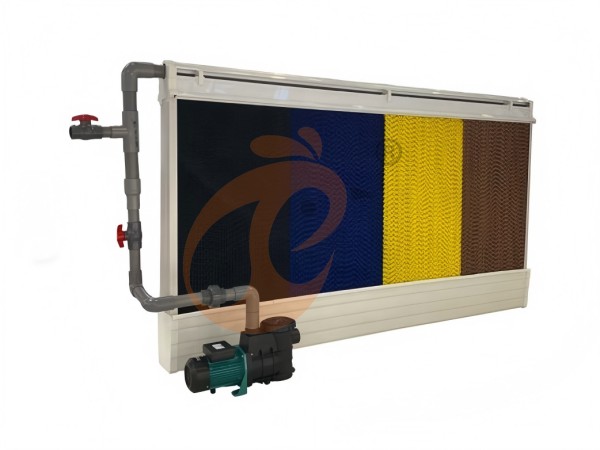

4. Cooling pads made from aspen fiber or cellulose, 0.15 m thick, with heights of 1.0, 1.5, 1.8, and 2.0 m, achieve evaporative efficiency of 85–90%.

5. Automatic water refill device maintains stable water levels and reduces manual labor.

6. The system leverages evaporative cooling: hot outdoor air passes through wet pads, absorbs heat from water evaporation, and lowers indoor temperature, optimizing poultry house environment.

Sample of cooling pad system

Slide the table to view the complete content. The data is for reference only.

Application of cooling pad system

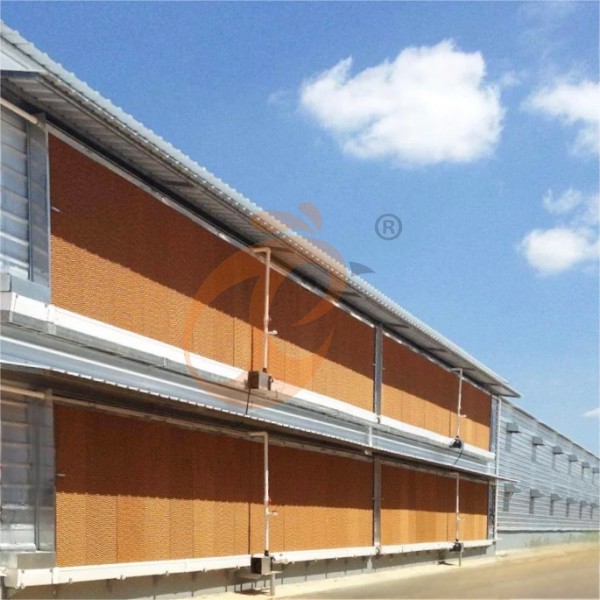

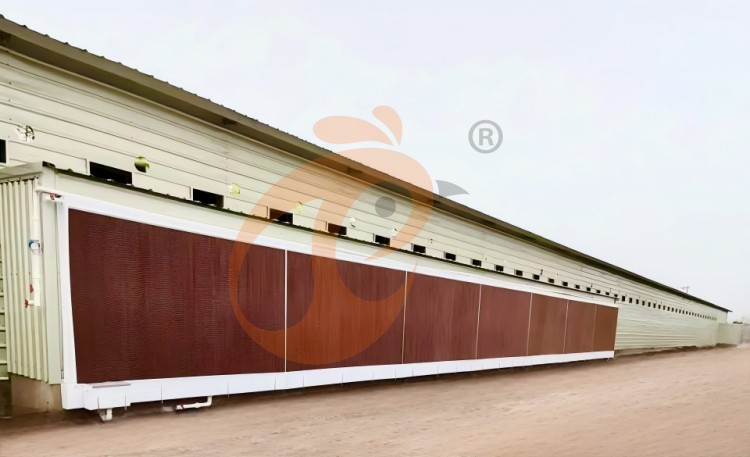

1. Install cooling pads on the windward side of the poultry house for maximum airflow efficiency.

2. Combine with adjustable exhaust fans to maintain indoor airspeed between 3–5 m/s for broilers and pullets.

3. Reduces internal humidity by 8–12%, preventing stress-related issues in poultry.

4. Water-efficient troughs and controlled pumps limit water wastage to less than 5% per cycle.

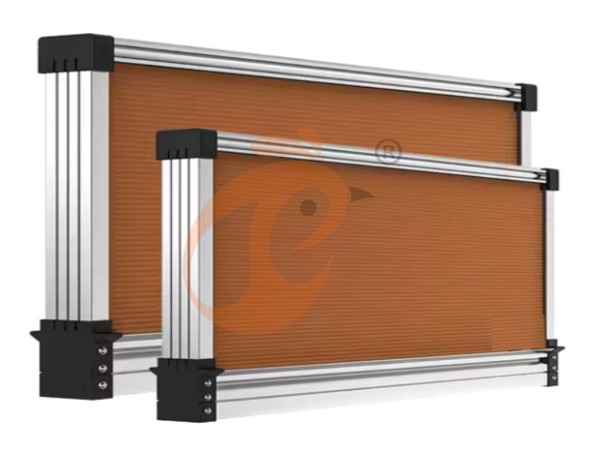

5. Removable pad design and upper sink structure facilitate easy cleaning and pad replacement, ensuring continuous high performance.

6. Suitable for farms aiming to reduce energy consumption, improve bird welfare, and enhance feed conversion rates.

Fittings of cooling pad system

Slide the table to view the complete content. The data is for reference only.

Slide the table to view the complete content. The data is for reference only.

Material of cooling pad system

1. Frame: Corrosion-resistant aluminum alloy, combines strength and long-term durability.

2. Water trough: High-strength PVC, prevents deformation, supports large water storage.

3. Filter: 40-mesh stainless steel or plastic, prevents impurities from clogging pads and pipes.

4. Cooling pad: Aspen fiber or cellulose, thickness 0.15 m, height adjustable to 1–2 m.

5. Pump & pipe: Stainless steel, resists corrosion and ensures consistent water delivery.

Working principle of cooling pad system

1. Vcloud artificial intelligent fusion

Fittings

• APP (mobile, iPad, computer)

• Hardware controllers

Working process

• Collect comprehensive data: water flow, pad performance, indoor temperature, humidity, airflow speed, and other key parameters for each poultry house and all houses.

• Operate equipment: send commands to start, run, and shut down each automated cooling pad device according to scheduled times.

• Alarm and shut down: automatically stop devices if abnormal operation is detected in the cooling pad system or connected farm systems.

2. Automated watering system

Fittings

Water pumps, trough sensors, valves

Working process

• Deliver water precisely to each pad according to consumption and house climate.

• Monitor flow rate and pressure; detect leaks or blockages.

• Adjust water supply dynamically based on temperature, house size, and pad length.

3. Environmental control system

Fittings

• Temperature, humidity, CO₂, and airflow sensors

• Exhaust fans and ventilation inlets

• Central controller

Working process

• Continuously monitor house climate parameters.

• Automatically adjust fan speed, pad water flow, and airflow to maintain optimal conditions.

• Log all data in the central system for analysis and remote access.

4. Alarm and safety system

Fittings

• Sensors for water level, pump status, electricity, and equipment

• Central alarm unit

Working process

• Detect abnormal conditions in any system (water flow, pump, climate, airflow).

• Trigger alarms via mobile app, email, or SMS.

• Shut down or isolate affected devices automatically to prevent damage or bird stress.

5. Lighting management system (optional integration if combined with pad monitoring)

Fittings

• LED indicators or IoT interface

• Central controller

Working process

• Indicate operating status of pumps and pad system.

• Provide alerts for maintenance, low water, or abnormal airflow conditions.

Maintain of cooling pad system

1. Pad cleaning: Flush every 2–4 weeks depending on water quality; removable pads allow easy replacement.

2. Filter inspection: Clean monthly; replace if damaged or clogged.

3. Pump maintenance: Check every 6 months; lubricate moving parts and inspect seals.

4. Frame inspection: Check annually for corrosion or loose connections.

5. Smart system: Verify sensor functionality and mobile app connectivity; update software regularly to maintain monitoring efficiency.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.
