Quick Viewing Ventilation Fan System

To make you easily understanding completed poultry climate system, here are 3 videos of TaiYu (HK) Group's cases - shows the cooperation of fans, pads, airflow panel door, inlet system and the other climate equipment in the chicken house.

TaiYu (HK) Group's case 1

At 2:36s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 2

At 0:52s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 3

At 0:22s showing it and full climate system in poultry house.

Why choosing and cooperate with Taiyu Group?

Hong Kong Headquarter, China, Ethiopia, Tanzania and Nigeria branch and factory supplying poultry farm solution with keeping talking with Euro and USA engineers.

Here is a 15 mins video showing mins showing poultry farm equipment, production department, QC, logistics department, customer cases...

1. Abundant practical experience – Founded in 2011, Taiyu Group has provided high-quality poultry battery cages and farm equipment to over 100 countries.

2. Fast and convenient delivery – With ready stock, orders paid in the morning can be delivered the same day or the next day in branches.

3. Easy after-sales support – Our team offers prompt and professional service to farmers of all sizes, ensuring your farm runs smoothly.

Learn completed house climate system, please find out:

Ventilation and temperature control system

Recommend poultry farm equipment you may need

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm business plan and equipment list with quotation.

Our design and quality of fan system and equipment based on European and USA standard.

European Standard Fan System

Sample of fan system

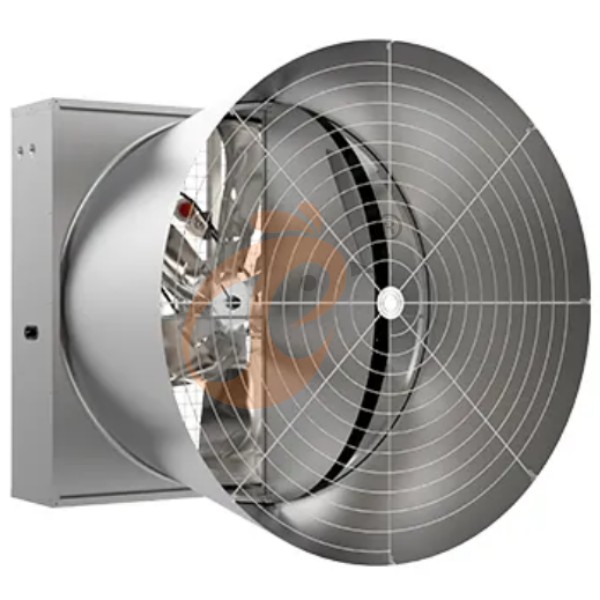

57″ fan

50″ fan

32 Roof fan

Slide the table to view the complete content. The data is for reference only.

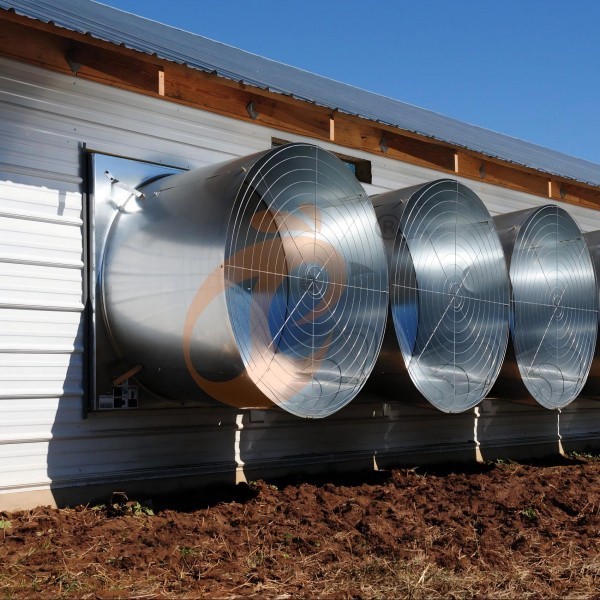

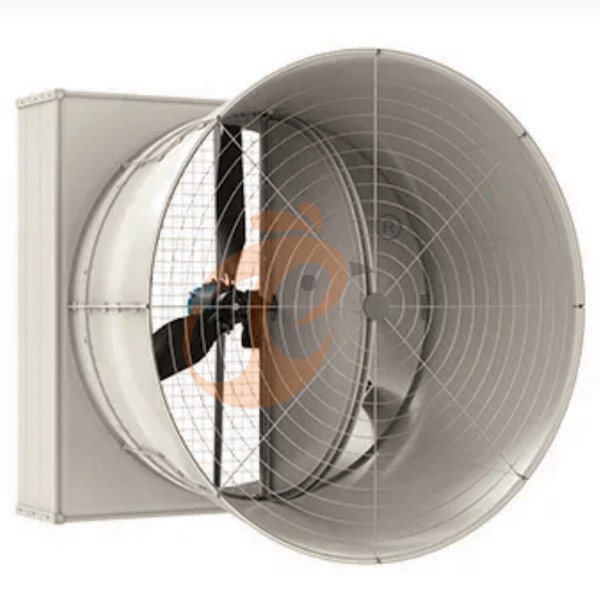

1. Fan-57 Cone: Suitable for main tunnel ventilation in large poultry houses.

2. Fan-HNP50 Butterfly Cone: High negative pressure areas, compact gable walls.

3. Fan-50 Direct Drive: Mid-size or spot ventilation.

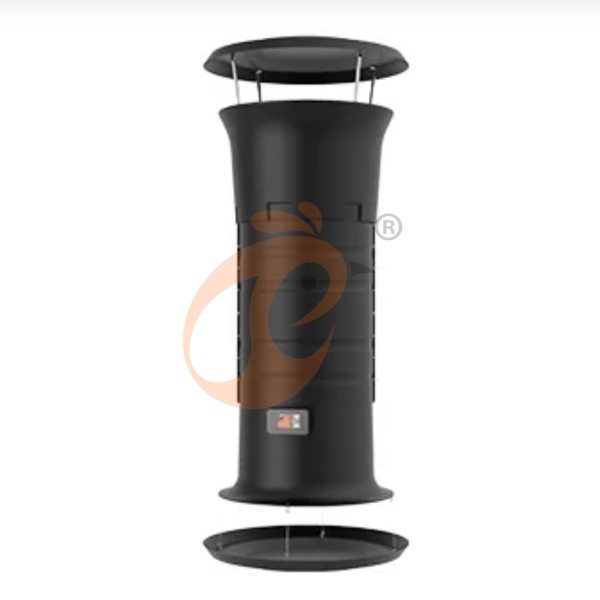

4. Fan-32 and Fan-24 Roof/Inlet: Exhaust or fresh air supply for ventilated roof systems.

Brief introduction of fan system

1. Designed for modern closed-type poultry houses, providing precise climate control.

2. Ensures uniform airflow and minimizes temperature differences.

3. Modular design allows flexible installation in new or existing houses.

4. Smart control enables real-time response to temperature, humidity, CO₂, and ammonia levels.

5. Suitable for both high-density layer houses and broiler or breeder farms.

Application of fan system

1. Layer houses: Stabilizes egg production, prevents heat stress.

2. Broiler houses: Controls temperature and humidity to enhance feed efficiency and reduce mortality.

3. Breeder houses: Maintains climate for mating and hatching performance.

Characteristic of the fan system

1. Stable operation: Core components and structure are tested for continuous use in high humidity and dusty poultry houses.

2. High airflow capacity: Each fan delivers consistent airflow to remove heat, moisture, and gases efficiently.

3. Energy-efficient: Direct drive and optimized blade design reduce power consumption while maintaining ventilation requirements.

4. Smart control integration: Fans support IoT-based systems for automated speed and operation adjustments.

5. Durable construction: Fan shells and frames use corrosion- and UV-resistant materials for long service life.

6. Key reliability data

Slide the table to view the complete content. The data is for reference only.

Fittings of fan system

Slide the table to view the complete content. The data is for reference only.

Material of fan system

1. Housing: PP, fiberglass, or hot-dip galvanized sheet, corrosion and UV resistant.

2. Blades: Nylon + fiberglass, PAG, or 430 stainless steel for stability and high efficiency.

3. Frame & brackets: Hot-dip galvanized or aluminum alloy for structural support.

4. Motor: Direct drive, permanent magnet or special fan motor, IP55 protection.

5. Bearings: Industrial grade, lubricated >100,000 hours for minimal maintenance.

Working principle of fan system

1. Fresh air inlet

Fittings

Cooling pads, Fan-32 Roof Inlet, light trap (optional)

Working process

Incoming air is cooled via evaporation in wet pads, reducing heat stress and improving airflow efficiency.

2. Heat & gas removal

Fittings

Fan-24 Roof, Fan-24 Roof Inlet, Fan-50 Butterfly, smart controller

Working process

Fresh air pushes warm, humid, and polluted air toward exhaust fans. Shutters open automatically to expel CO₂ and ammonia.

3. Automatic control

Fittings

VCloud Fusion controller, sensors, wiring

Working process

Sensors provide real-time data. Controller adjusts fan numbers and speed automatically. Remote monitoring and alerts enable fast response to abnormal conditions.

Maintain of the ventilation fan system

1. Clean fans, shutters, and blades quarterly.

2. Inspect motor, bearings, and belts monthly.

3. Check electrical connections and waterproof boxes.

4. Calibrate sensors and update controller software.

5. Lubricate moving parts according to schedule.

6. Keep surrounding area clear to maintain unobstructed airflow.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.

Recommended related chicken cage

To learn more, please visit product list...

Tips of selecting chicken cage and poultry farm equipment

For reference only, it depends on your actual demands and situation of your poultry farm.
