Quick Viewing Environment Terminal Control System

All pictures (or videos) of this pages are the application of our environment terminal control system in customers' projects.

To make you easily understanding, here is the project video of TaiYu (HK) Group,

At 0:34s showing vcloud smart poultry system.

The video is suitable for viewing on vertical screen devices. Please open and watch it using a mobile phone or iPad.

Our design and quality of ventilation and temperature control system and equipment based on European and USA standard.

To make you easily understanding completed poultry climate system, here are 3 videos of TaiYu (HK) Group's cases - shows the smart controller, cooperation of fans, pads, airflow panel door, inlet system and the other climate equipment in the chicken house.

TaiYu (HK) Group's case 1

At 2:36s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 2

At 0:52s showing it and full climate system in poultry house.

TaiYu (HK) Group's case 3

At 0:22s showing it and full climate system in poultry house.

Why choosing and cooperate with Taiyu (HK) Group?

Here is a 15 mins video showing mins showing poultry farm equipment, production department, QC, logistics department, customer cases...

1. You will have the world-class quality while costs are reduced by 20%.

The research and development keep talking with Euro and USA engineers, but produce in China or other branches.

2. You can quickly obtain all the data of their poultry farm.

We have artificial intelligent management system, such as viewing the data of feed consumption, growth rate and so on of all chicken houses through the APP installed on your mobile phone, I-pad or computer.

Recommend poultry farm equipment you may need

Whatsapp 24 hours online now +86 18830120193, +234 8111199996, to get completed your poultry farm business plan and equipment list with quotation.

European Standard Environment Terminal Control System

Brief introduction of environment terminal control system

Overall poultry farm arrangement

1. Segmented three-zone air inlet control for front, center, and rear of poultry house.

2. Day/night temperature adjustment based on outdoor conditions.

3. Industrial-grade touchscreen supports 40-way dry contact for stable operation.

4. Real-time data transmission through smart gateway to cloud server for multi-terminal monitoring.

5. Fully automated environmental management based on built-in parameters; settings can be customized per farm.

6. Supports integrated management of feed, water, lighting, heating, and wet curtain cooling for increased efficiency.

Characteristic of environment terminal control system

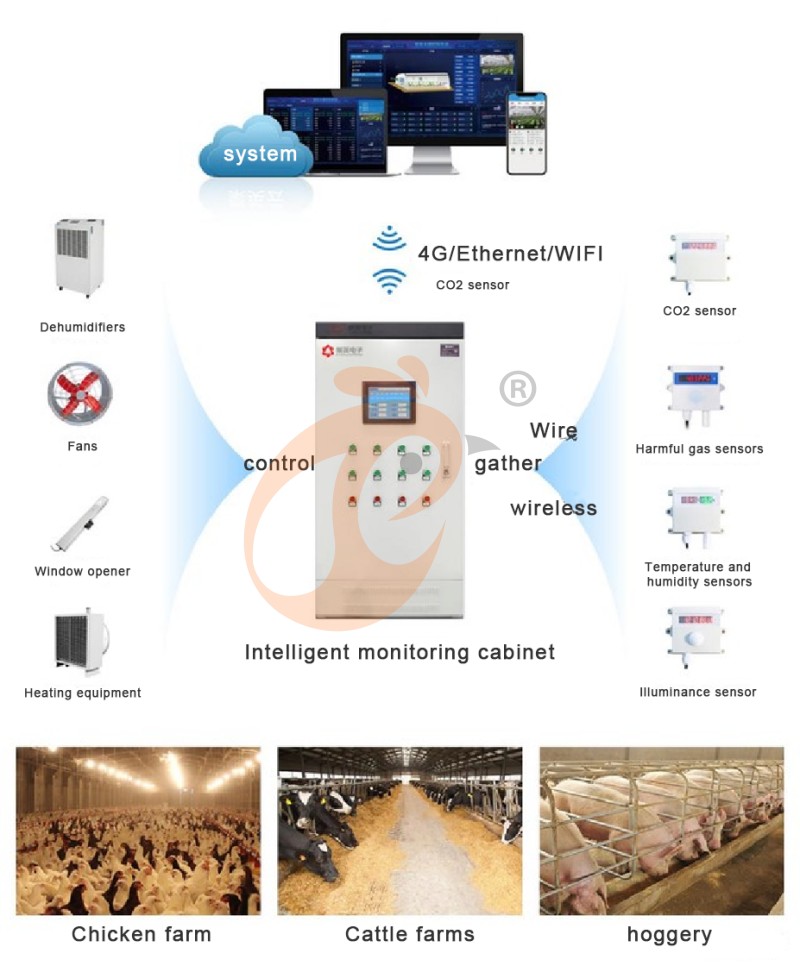

Layout of software and hardware

Poultry farm-cloud controlling

1. Industrial touchscreen controller: 10-inch display showing 3D schematic of the chicken house with all environmental parameters.

2. Multi-zone ventilation: 22 fan groups with 36 ventilation levels; mountain wall and side wall curtains controlled independently.

3. Three-section sensing: Front, center, and rear sensors allow real-time adjustment of small window openings to reduce temperature differences.

4. Speed-controlled fans with time function: Ventilation adjusts according to minimum respiration rate.

5. Lighting simulation: Sunrise and sunset simulation with adjustable intensity and delayed switch-off function.

6. Day and night temperature adjustment: Automatic temperature control based on set time periods.

7. Zone heating control: Three independent zones; supports down-pressure and circulating fans, and chain material line uniformity.

8. Wet curtain cooling modes: Time-controlled, normally open, or automatic adjustment based on temperature.

9. Water and feed monitoring: Records water consumption from 6 meters; feed consumption statistics supported for up to 4 feed towers.

10. Cloud integration (Controller-9200 Plus): Real-time monitoring of temperature, humidity, negative pressure, and CO₂; abnormal data triggers alarms. Supports multi-terminal data sharing and online breeding management.

Sample of environment terminal control system

Full data collection

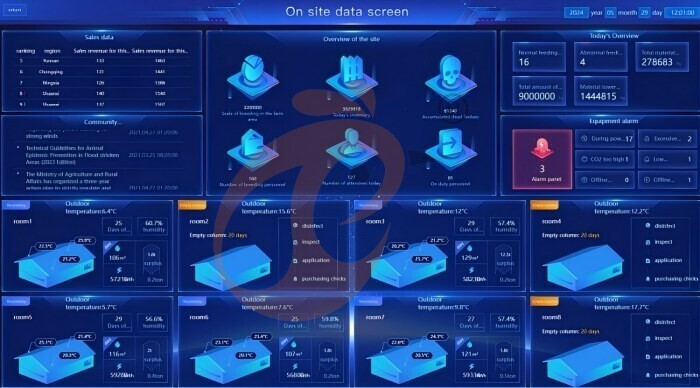

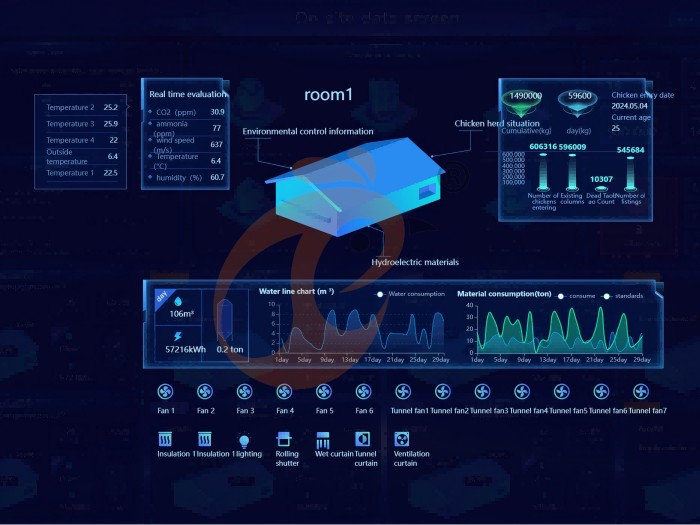

On site data screen

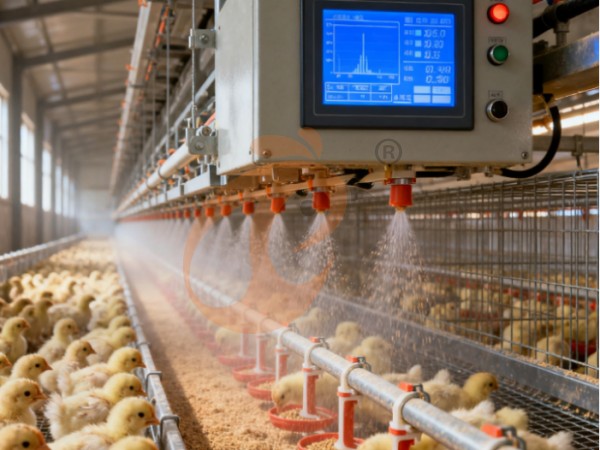

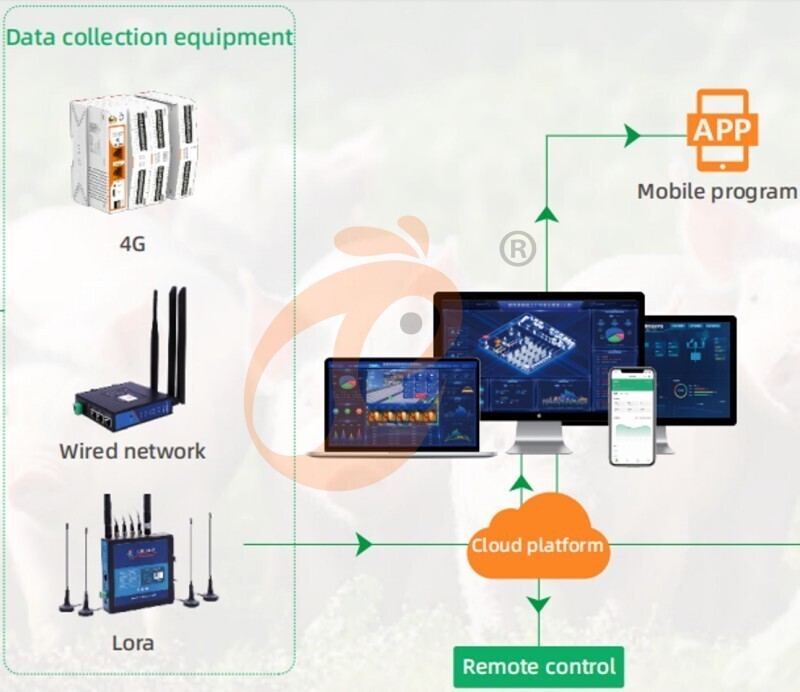

Hardware device in poultry farm

Slide the table to view the complete content. The data is for reference only.

Working principle of environment terminal control system

1. Sensors and monitoring devices

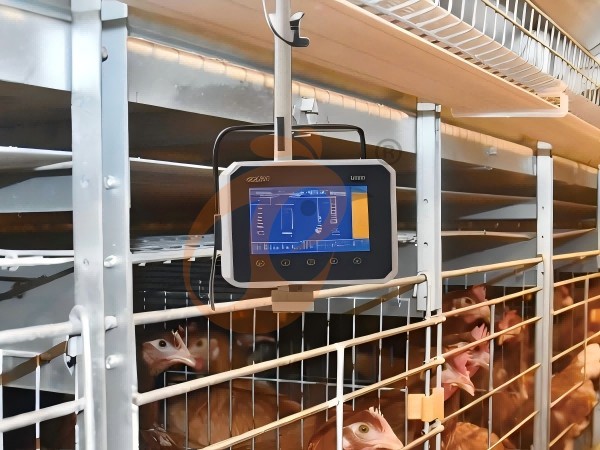

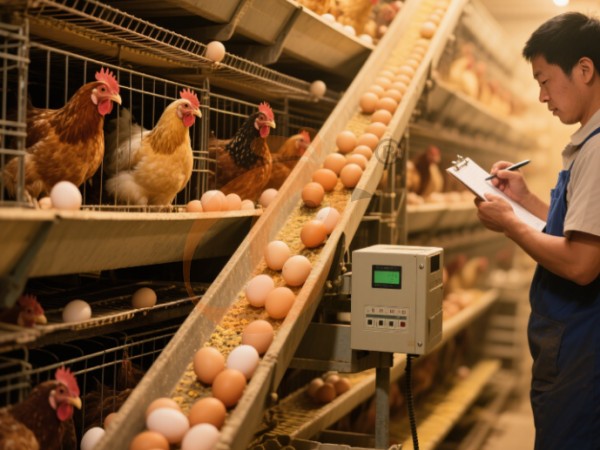

Sensor on cage system

Sensor on cage free system

Sensor on poultry aviary system

Fittings

• Temperature sensors

• Humidity sensors

• Airflow sensors

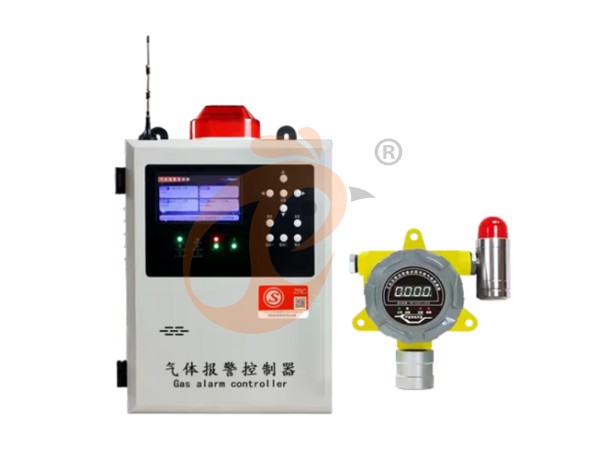

• Ammonia (NH₃) and CO₂ sensors

• Static pressure sensors

Working process

• Measure temperature, humidity, airflow, and air quality in multiple zones.

• Transmit data in real-time to the ETCS controller and cloud platform.

• Automatically update dashboard on mobile app, tablet, or PC for farm managers to view current house conditions.

2. Controller and cloud platform

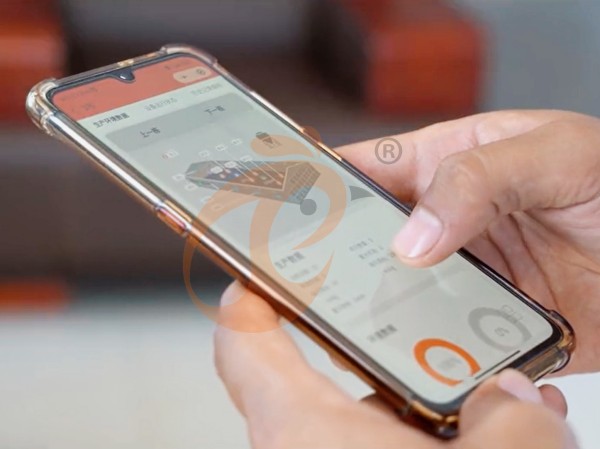

Mobile managing app

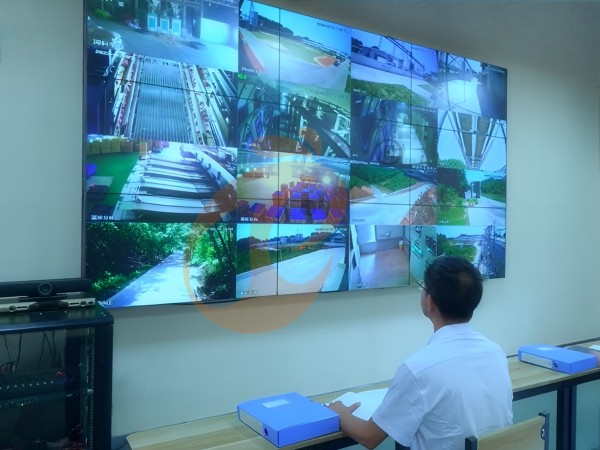

CCTV center

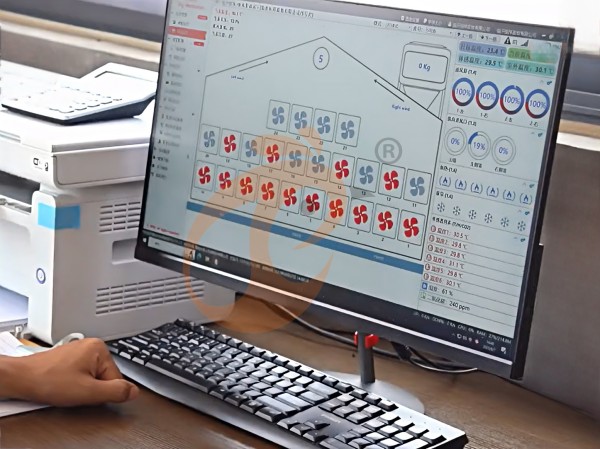

Data screen

Fittings

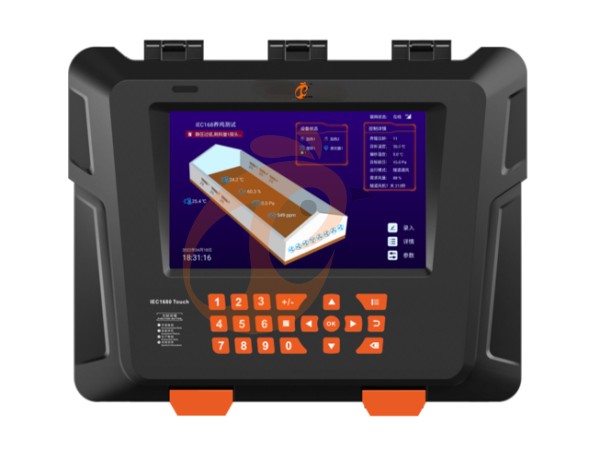

• Industrial touchscreen controller

• Cloud integration module

• Communication interfaces (Wi-Fi / RS485 / Ethernet)

Working process

• Receive environmental data from all sensors.

• Analyze real-time parameters and compare with pre-set target ranges.

• Issue commands to adjust fans, curtains, humidifiers, and dehumidifiers to maintain optimal conditions.

• Store historical data for predictive maintenance and operational optimization.

3. Automated equipment control

Fittings

• Variable-speed ventilation fans

• Automated curtains and dampers

• Humidifiers and dehumidifiers

Working process

• Operate equipment according to controller instructions.

• Fans adjust speed based on temperature, airflow, and ammonia levels.

• Curtains open/close automatically to regulate airflow distribution.

• Humidifiers and dehumidifiers adjust to maintain target humidity.

• Equipment runs, stops, or switches modes according to farm schedule.

4. Alarm and safety system

Fittings

• Controller alarm module

• Emergency shutdown interface

Working process

• Detect abnormal readings or equipment malfunction.

• Send real-time alerts to farm manager via mobile app or computer.

• Automatically shut down relevant equipment to prevent damage or risk.

• Log alarm events and generate maintenance reminders.

Maintain of environment terminal control system

1. Fans: Clean blades quarterly; check motor alignment.

2. Sensors: Verify readings monthly; calibrate as needed.

3. Curtains & dampers: Lubricate biannually; ensure smooth operation.

4. Controller software: Update quarterly to maintain algorithm efficiency.

5. Ducts & pipes: Inspect biannually; remove dust or blockages.

6. Summary: Regular maintenance ensures reliable operation, optimal microclimate, and improved bird performance.

Tips of selecting chicken cage and poultry farm equipment

For reference only, it depends on your actual demands and situation of your poultry farm.
